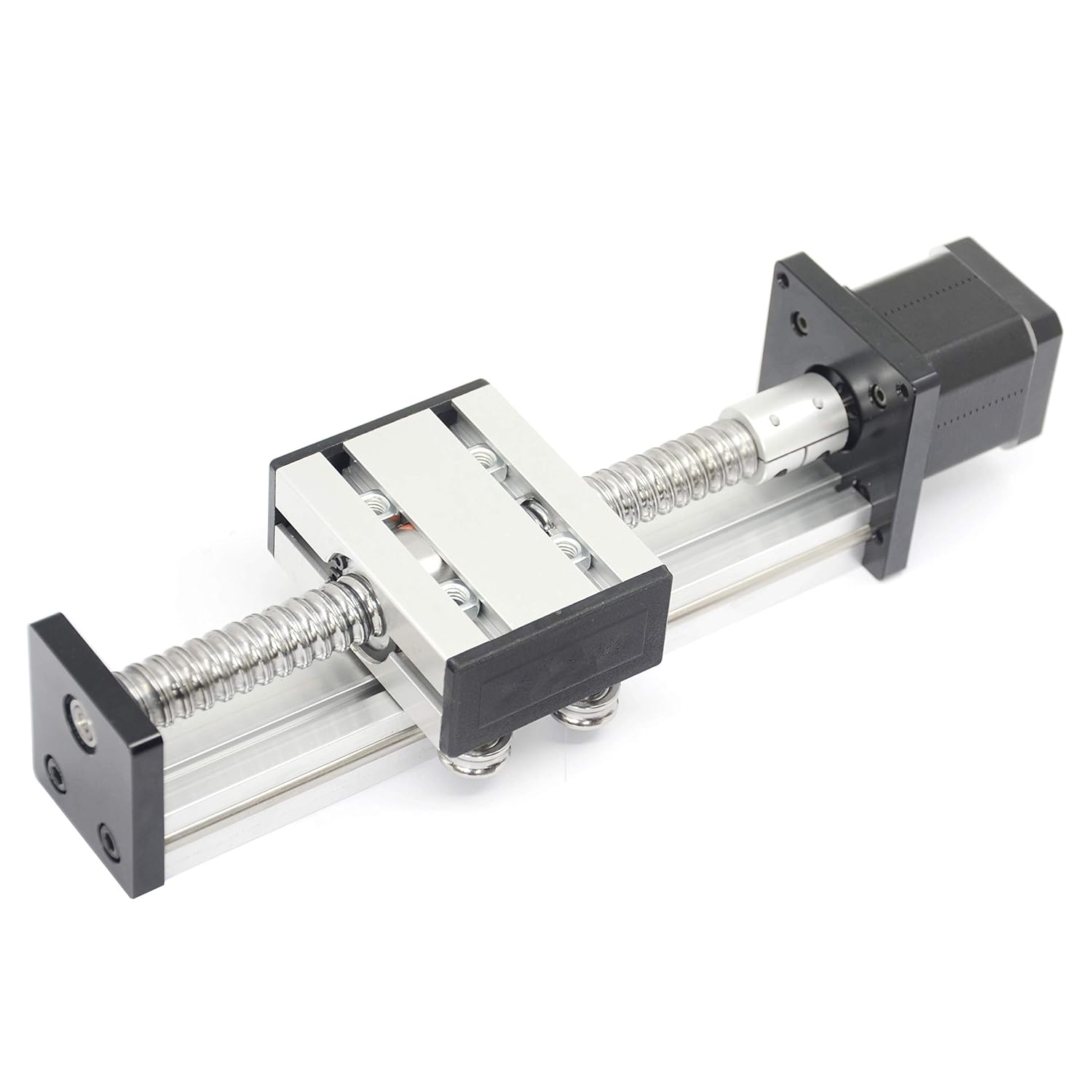

100mm Travel Length Linear Rail Guide Ballscrew SFU1605 with NEMA17 Stepper Motor for DIY CNC Router Parts X Y Z Linear Stage Actuator
Product details
| Management number | 211200599 | Release Date | 2026/04/04 | List Price | $27.52 | Model Number | 211200599 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Stepper motor Parameter: Step angle: 1.8 degree Motor flange size: 42mm Motor length: 47mm Holding torque: 1.2N.m Current: 1.5A Resistance: 0.8 ohm Inductance: 2.4 mH Rotor Inertia: 87.3g.cm Lead wire: 4pcs Wiring: Black: A+ Green: A- Red: B+ Blue: B- Linear Stage Actuator Parameter: Effective Travel Length: 100mm Total length :260mm Type: linear system moulde Ballscrew type: SFU1605 (diameter:16mm, pitch of screw:5mm) Level ballscrew: c7 Weight: 1265g Package Content: 1pcs Linear Stage Actuator with NEMA17 Stepper Motor 3pcs Allen wrench
- High precision, heavy load resistance SFU1605, Horizontal maximum load capacity: 30kg; Vertical maximum load capacity: 15kg
- Repeat positioning accuracy of ± 0.03mm
- Speed: 0-100mm/s
- 4 pcs M6 nuts on the moving block to fix the workpiece
- Effective stroke:100mm, Lead:5mm ( The lead screw moves 5mm in one turn)
| UPC | 303277053343 |
|---|---|
| Model | BE050-3 |
| Speed | 100 RPM |
| Voltage | 12 Volts (DC) |
| Brand Name | Befenybay |
| Manufacturer | Befenybay |
| Material Type | Aluminum |
| Shaft Diameter | 16 Millimeters |
