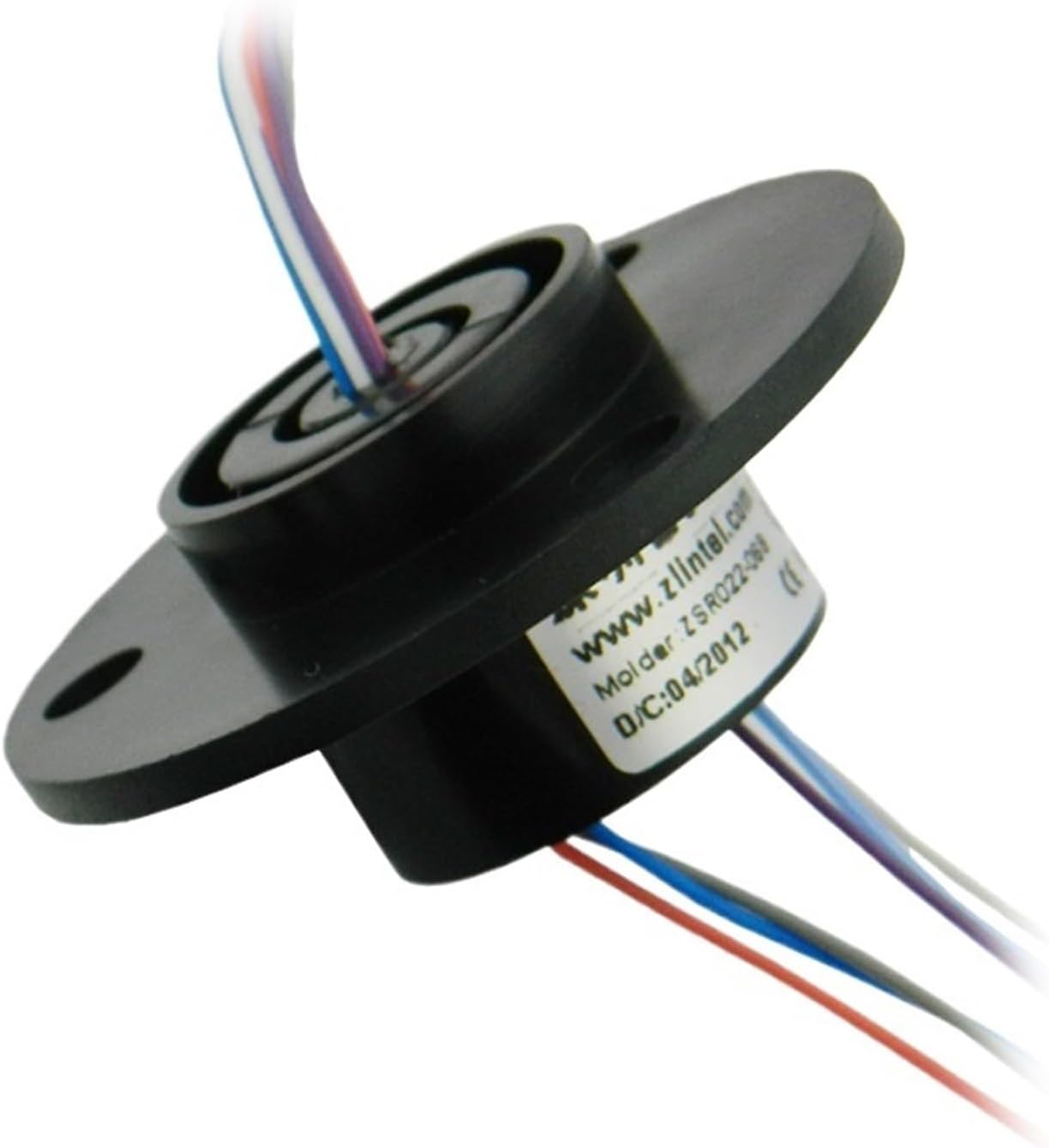

1PCS 6-Way Conductive Slip Ring Collector Ring high Speed Ball Conductive Ring 360 Degree Rotary Connector

1PCS 6-way conductive slip ring collector ring high speed ball conductive ring 360 degree rotary connectorModel: ZSR022-06BScope of application: high-speed domes, stage lights, three-sided turning, revolving doors, precision turntables, equipment, packaging equipmentmodelZSR022-06BNumber of channels6Rated current2 A/wayRated voltage240VAC/DCSpeed0-200rpmouter diameterø22mmContact materialPrecious metalShell materialEngineering plasticsdynamic resistanceMinimum 1mΩelectrical noise<;10mΩ,50mA,5RPMWire specificationsAWG16 silver plated TeflonCompressive strength500VDC@50Hz,10sWire lengthStandard 250mmDielectric strength500MΩ@600VDC,10sProtection levelIP54working temperature-20℃ ~+60℃Working humidity10%-85% RHShockproof levelMIL-STD-810EWhy choose slip rings?When the connection between electrical and mechanical parts needs to provide 360° unrestricted continuous electrified rotation, we usually encounter the problem of wire twisting and twisting. At this time, the use of conductive slip rings can completely solve the problem of twisting or twisting of wires. , with the continuous innovation and advancement of technology, conductive slip rings can simultaneously provide large current power transmission and signal rotation connection.

• 1PCS 6-way conductive slip ring collector ring high speed ball conductive ring 360 degree rotary connector
