2PCS 22mm Latching Push Button Switch,20A on Off Switch 12v-24v IP67 Waterproof Marine Switches for Car, Boat, Motorcycle, DIY Enthusiasts(Yellow, 185 Replacement Symbols, Black Shell)
Product details
| Management number | 218138221 | Release Date | 2026/05/03 | List Price | $9.88 | Model Number | 218138221 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [Parameter]: FILN Pushbutton switch 22mm Voltage: 5V-24V Current: 20A Waterproof rating: IP67 Tail epoxy resin potting waterproof. Wire length: 15cm Electrical life: 100,000 cycles (at 220V/10A), 30,000 cycles (at 220V/20A); mechanical life: 200,000 cycles.

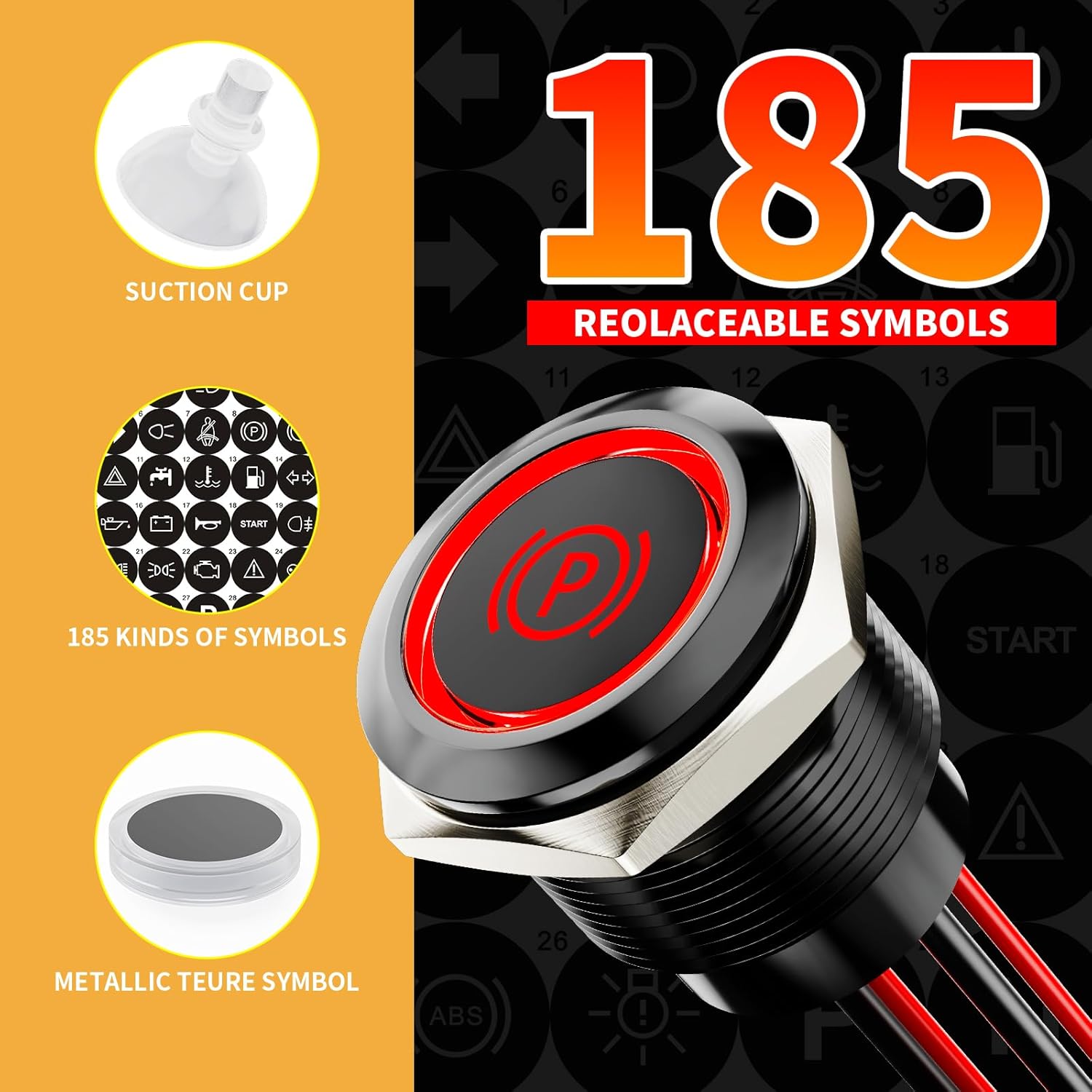

- [How to use] Equipped with 185 symbols, if you need to replace the symbols, you can directly remove the internal suction cup (need to be wet), the cover that holds the symbols to replace the symbols. At the same time, you need to open the 22mm mounting hole, insert the push button switch, the head has a thread, can be screwed into the installation, two for the switch wire (black), the other two for the light wire
- [Features] 185 symbols for every scenario you need: dual flashers, turn signals, one-touch start switch, 20A high current, zinc-aluminium alloy black-plated housing material, epoxy-polyester sealing (visible at the bottom), fully enclosed, IP67 rated (cannot be pressed into water). Don't worry about water vapour in the cover, the button is also waterproof and airtight
- [Applications] Wide compatibility: can be used to adjust the dashboards of cars, motorbikes and boats, also can be used for household appliances, industrial dashboards, automated machinery, test equipment
- [Package] 2 Pieces Buttons + 2 Transparent Covers + 2+ Black Surface Ring Covers + 185P Symbol Sticker + 1 Instruction Booklet + 2 Nuts + 2 Waterproof Rings + 2 Suction Cups (Very Important !!!)
| Color | Yellow |
|---|---|
| Model | FLM22-FW-8-A10Z4-BYXX012-24V-02 |
| Wattage | 480 watts |
| Terminal | Through Hole |
| Brand Name | FILN |
| Unit Count | 1.0 Count |
| Item Weight | 85 Grams |
| Part Number | FLM22-FW-8-A10Z4-BYXX012-24V-02 |
| Switch Type | Push Button |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Control Type | On-Off |
| Manufacturer | FILN |
| Material Type | Metal, Zinc Aluminum Alloy |
| Mounting Type | Panel Mount |
| Connector Type | Plug In |
| Current Rating | 20 Amps |
| Operation Mode | ON-OFF |
| Item Dimensions | 5.47 x 4.45 x 1.1 inches |
| Number of Items | 2 |
| Contact Material | Brass |
| Operating Voltage | 24 Volts |
| Specification Met | CE, UL |
| Compatible Devices | Cars, motorbikes, boats, household appliances, industrial dashboards, automated machinery, test equipment |
| Included Components | Instruction Manual |
| Number of Positions | 1 |
| Warranty Description | 2 Year Manufacturer |
| Upper Temperature Rating | 85 Degrees Celsius |
| Compatible with Vehicle Type | Cars, Motorbikes, Boats |
| International Protection Rating | IP67 |
