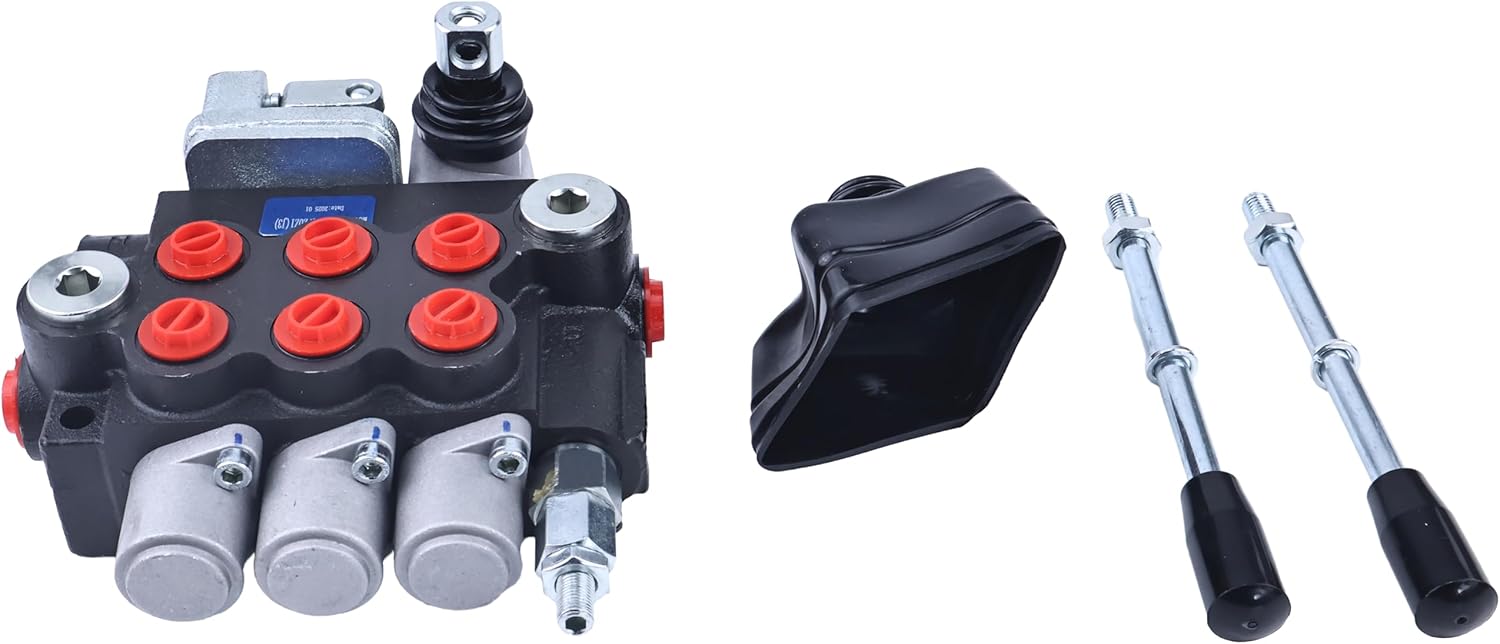

3 Spool Hydraulic Directional Control Valve With Joystick 11gpm 40L 3x Double Acting Q40/3 JOY KPL
Product details
| Management number | 211103392 | Release Date | 2026/04/04 | List Price | $42.80 | Model Number | 211103392 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Product Name: 3 Spool Hydraulic Directional Control Valve With Joystick Symbol: 03P40 A1A1A1 + JOY Recommended oil flow: 0 - 40 l / min. Example control: two 2-way drives. Joystick with five positions (1 - 2 - 0 - 3 - 4) on the spring, i.e. it returns to the vertical: Position 0 neutral (joystick positioned vertically) piston rods of both drives are stationary - oil overflows. Working position 1 (joystick lever tilted forward) The piston rod of the first actuator extends. Working position 2 (joystick lever in an inclined position) The piston rod of the first drive is retracted. Working position 3 (joystick lever inclined to the left) The piston rod of the other drive extends. Working position 4 (joystick lever inclined to the right) The piston rod of the other drive is retracted. Connection: Pump supply (P1, P2): BSP 1/2 "internal thread Back to the tank (T1, T2): BSP 1/2 "internal thread Sections (A1, A2; B1, B2): BSP 3/8 "internal thread Serial connection (N): BSP 1/2 internal thread Pressure range: Maximum pressure on the supply: 250bar Maximum return pressure: 50 bar Maximum pressure on the sections: 300 bar The overflow valve is factory-set to 175 bar Possibility of self-regulation, full turnover change by 30bar Package Includes: 1X 3 Spool Hydraulic Directional Control Valve With Joystick
- Product Name: 3 Spool Hydraulic Directional Control Valve With Joystick
- Symbol: 03P40 A1A1A1 + JOY
- Recommended oil flow: 0 - 40 l / min.
- Example control: two 2-way drives.
- Joystick with five positions (1 - 2 - 0 - 3 - 4) on the spring, i.e. it returns to the vertical: Position 0 neutral (joystick positioned vertically) piston rods of both drives are stationary - oil overflows. Working position 1 (joystick lever tilted forward) The piston rod of the first actuator extends. Working position 2 (joystick lever in an inclined position) The piston rod of the first drive is retracted. Working position 3 (joystick lever inclined to the left) The piston rod of the other drive extends. Working position 4 (joystick lever inclined to the right) The piston rod of the other drive is retracted.
- Connection: Pump supply (P1, P2): BSP 1/2 "internal thread Back to the tank (T1, T2): BSP 1/2 "internal thread Sections (A1, A2; B1, B2): BSP 3/8 "internal thread Serial connection (N): BSP 1/2 internal thread
- Pressure range: Maximum pressure on the supply: 250bar Maximum return pressure: 50 bar Maximum pressure on the sections: 300 bar The overflow valve is factory-set to 175 bar Possibility of self-regulation, full turnover change by 30bar
- Package Includes: 1X 3 Spool Hydraulic Directional Control Valve With Joystick
| Size | 7 inches (W) x 8.6 inches (L) x 3.9 inches (H) |
|---|---|
| Brand Name | LSSOCH |
| Unit Count | 1.0 Count |
| Valve Type | Directional Control Valve |
| Thread Size | BSP 1/2" internal thread, BSP 3/8" internal thread |
| Thread Type | BSP 3/8 internal |
| Manufacturer | LSSOCH |
| Model Number | Hydraulic Directional Control Valve |
| Material Type | Metal |
| Connector Type | Threaded |
| Exterior Finish | Stainless Steel |
| Item Dimensions | 8.6 x 7 x 3.9 inches |
| Number of Ports | 10 |
| Maximum Pressure | 250 Bars |
| Number of Pieces | 1 |
| Included Components | 1X 3 Spool Hydraulic Directional Control Valve With Joystick |
| Outlet Connection Size | 0.38 Inches |
| Outlet Connection Type | BSPT |
