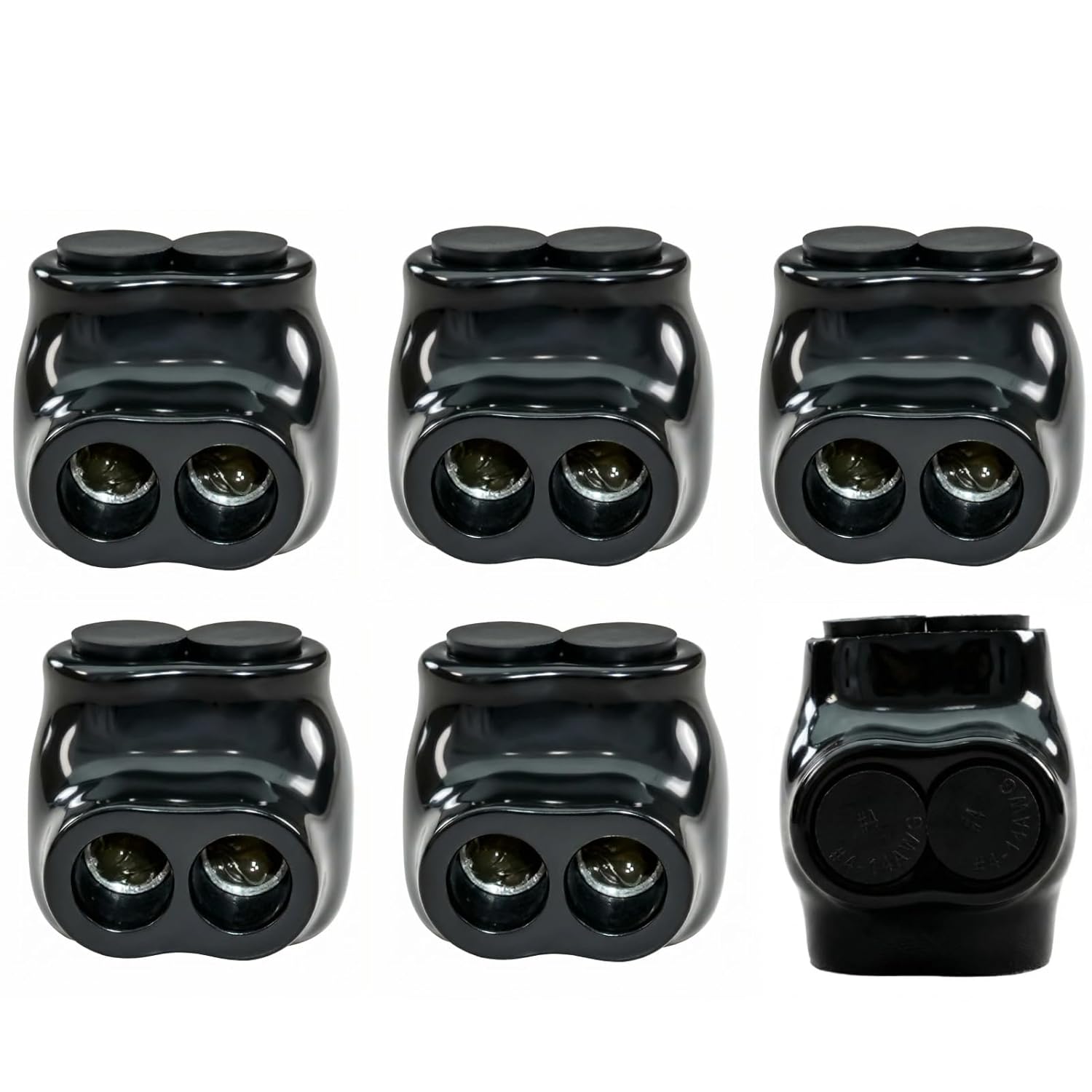

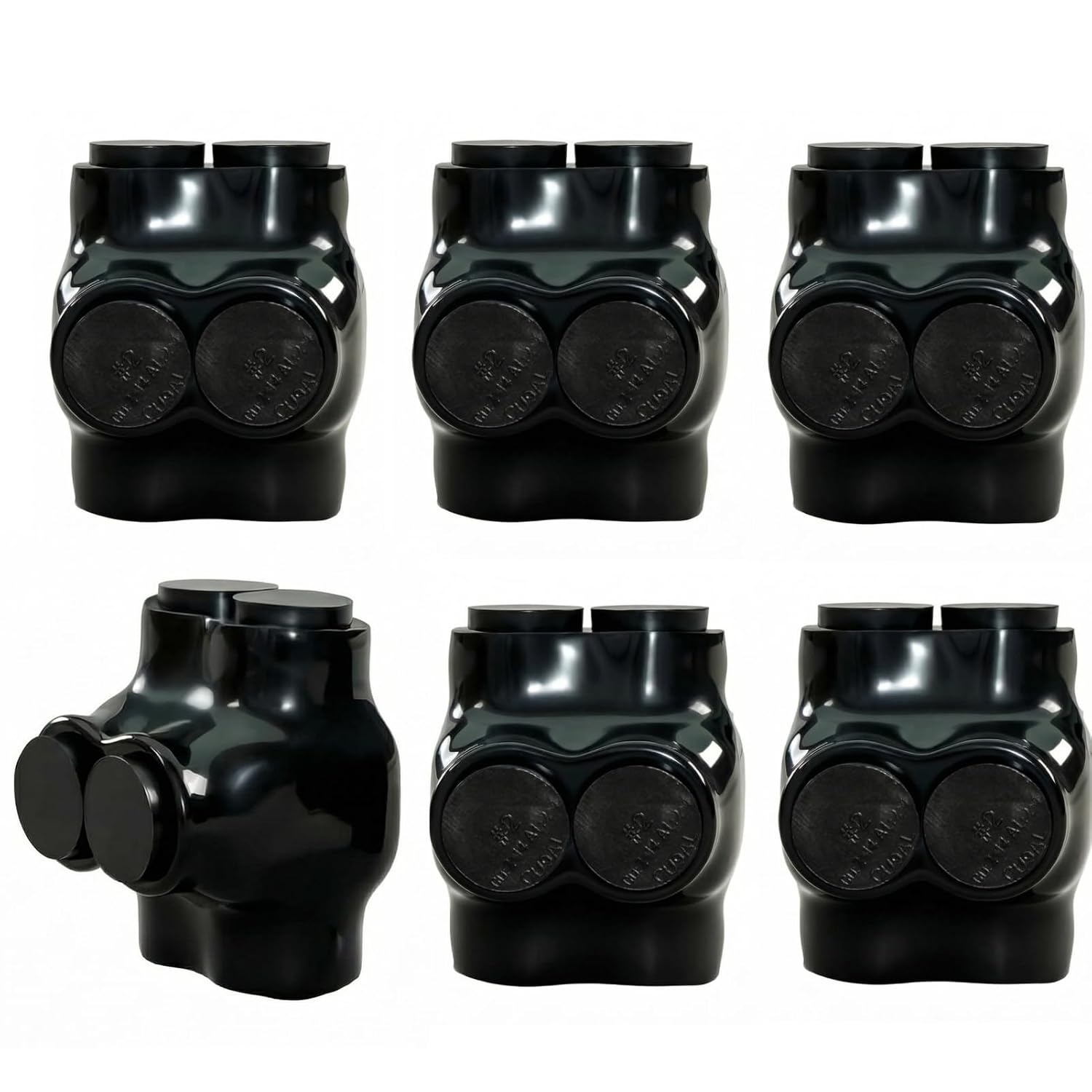

6Pcs Insulated Multi Tap Connector 2-14 AWG 3 Port Insulated Wire Connectors Aluminum to Copper Slotted or 5/32 Allen Hex Dual Sided Entry for Wiring Applications UL Listed
Product details
| Management number | 211032131 | Release Date | 2026/04/04 | List Price | $17.97 | Model Number | 211032131 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

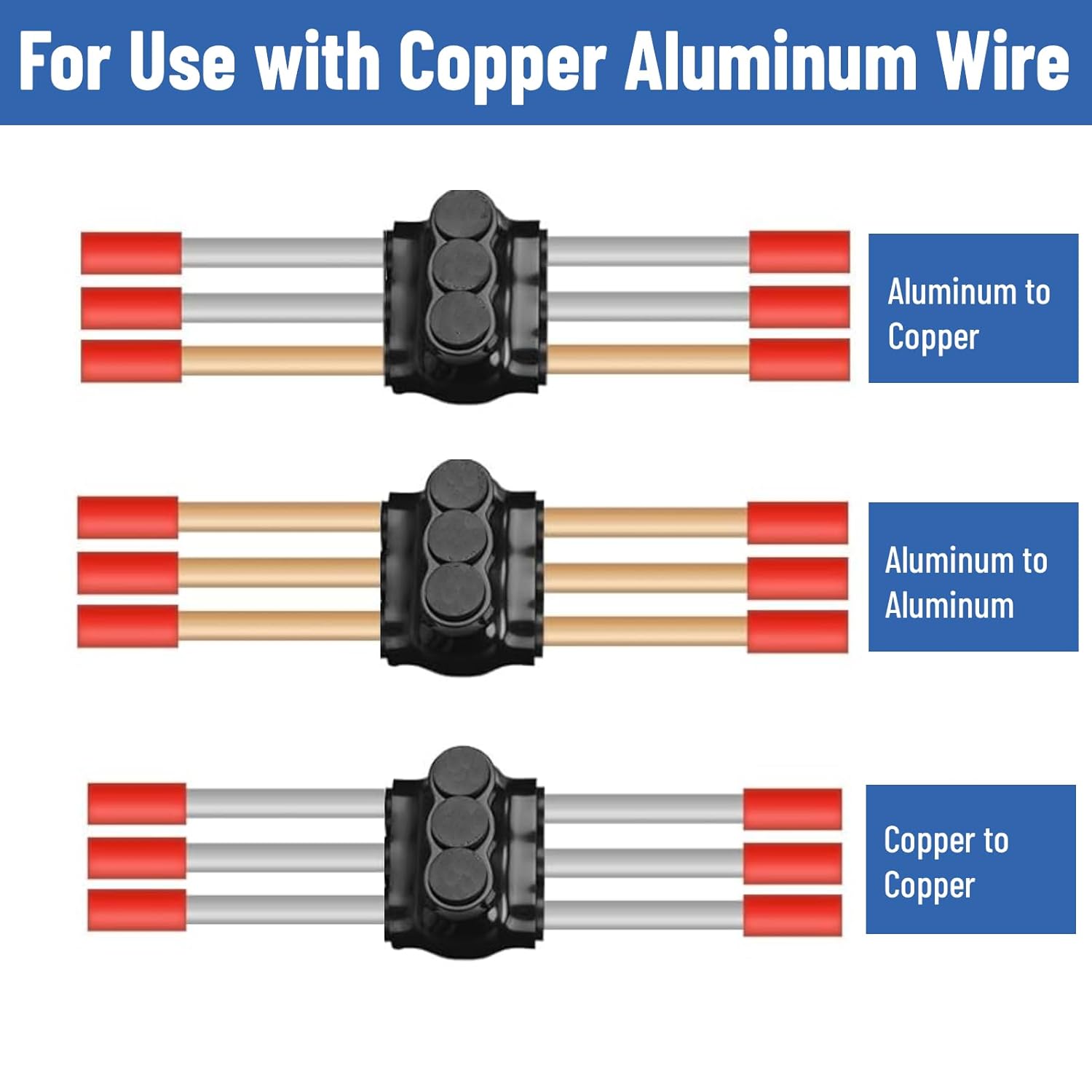

Black Insulation. 6061-T6 Aluminum. Insulated with Rugged High-Dielectric Plastisol Dipped Coating. Pre-filled with Oxide Inhibitor. Easy Re-Entry for Changes, Inspection or Troubleshooting.Plugs Marked with Connector Max & Min Wire Size for Easy ID . CU9AL Dual Rated for use with Copper and/or Aluminum Wire. One Wire Per Terminal. Temperature Range of -49°F to 194°F(-45°C to 90°C). 600 Volt. Rated For Use with 90°C Cables. ANSI C119.4 & UL 486B listed.
- Insulation Material: Insulated splice connectors is crafted with insulation material, the connector is designed to resist wear, tear, protecting the cables from abrasion for a long time
- UL Listed: These wire connectors are prefilled with oxide inhibitor, making the installation effective. Temperature Range of -49°F to 194°F(-45°C to 90°C). 600 Volt. Rated For Use with 90°C Cables. ANSI C119.4 & UL 486B listed
- Dual Sided Entry Design: Dual sided entry design, these wire connectors can be easily reinserted for inspection, troubleshooting, and changes. The removable plugs ensure the entry ports are securely closed while preventing debris from entering the connector
- Compact Size: Insulated wire connectors is suitable for wire ranges 4-14 AWG, saving electrical box space. t These ground wire connectors facilitate a quick and easy installation process
- Application: For various electrical wiring applications. From residential to commercial projects, they can be applied in gutters, ducts, enclosure power distribution, and more
| Color | Black |
|---|---|
| Gauge | 2.0 |
| Model | B0GBVPXNBR |
| Terminal | Butt Terminal |
| Brand Name | HIITIO |
| Unit Count | 6.0 Count |
| Manufacturer | HIITIO |
| Material Type | Aluminum |
| Connector Type | Butt Splice |
| Maximum Voltage | 600 Volts (DC) |
| Contact Material | Aluminum |
| Specification Met | UL |
| Included Components | Insulated Multi Tap Connector |
| Insulation Material Type | Polyvinyl Chloride |
| Item Dimensions L x W x H | 1.63"L x 1.4"W x 1.93"H |
