7 inch 1024x600 700nit IPS LCD Screen and USB 50pin Controller Board,Support Image 180° Rotation
Product details
| Management number | 211056008 | Release Date | 2026/04/04 | List Price | $36.00 | Model Number | 211056008 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
LCD Controller Board: USB LCD Board Work for 6.5inch~10.1inch TTL LCD ScreenInput Power Adapter: 5dc More than 2A.Come In Standby Model When Not Input SignalStandby Model <1WVideo Input: 1.4 USBUSB Port: Support Play Video, USB Output Voltage 5Vdc max 500mAAudio：Speaker 8ohm 2W or 4ohm 2WOSD: Brightness Contrast Auto Language And So OnLanguage: English French German Spanish Italian And So OnBoard Size: 87.2mm x 61.7mm x 8mm7" VS070T-006A 1024X600 LCD Screen:Display Mode IPS, Normally White, Transmissive Resolution 1024xRGB)×600Outline Size 156.7×89.1×5mm (H×V×D)Display Area 154 ×85 (H×V)Brightness 700 cd/m² (Typ.)Contrast Ratio 500:1 (Typ.) (TM)Viewing Angle 85/85/85/85(Typ.)(CR≥10) [Left / Right / Up / Down]Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPCBacklight WLEDInput Voltage 3.3V (Typ.)Packing list:1× USB LCD Controller Board VS-TY2660H-V8271× 7inch VS070T-006A 700nit high brightness LCD Screen1× Keyboard With CablePS: Please make sure use 5Vdc power adapter. More than 5Vdc will damage the board.
- 7 inch 700nit high brightness LCD display monitor ,178 degree full viewing angle ,display area :154.21 × 85.92(H×V)mm, wled backlight ,Signal Interface Parallel RGB (1 ch, 8-bit) , 50 pins , FPC.
- Driver board video input: USB,USB output voltage 5Vdc max 500mA, Audio output：Speaker 8ohm 2W or 4ohm 2W, Please use in insulated environment.
- Input Power Supply: 5V DC More than 2A (the voltage can only be 5V DC),Pls prepare power adapter by yourself.

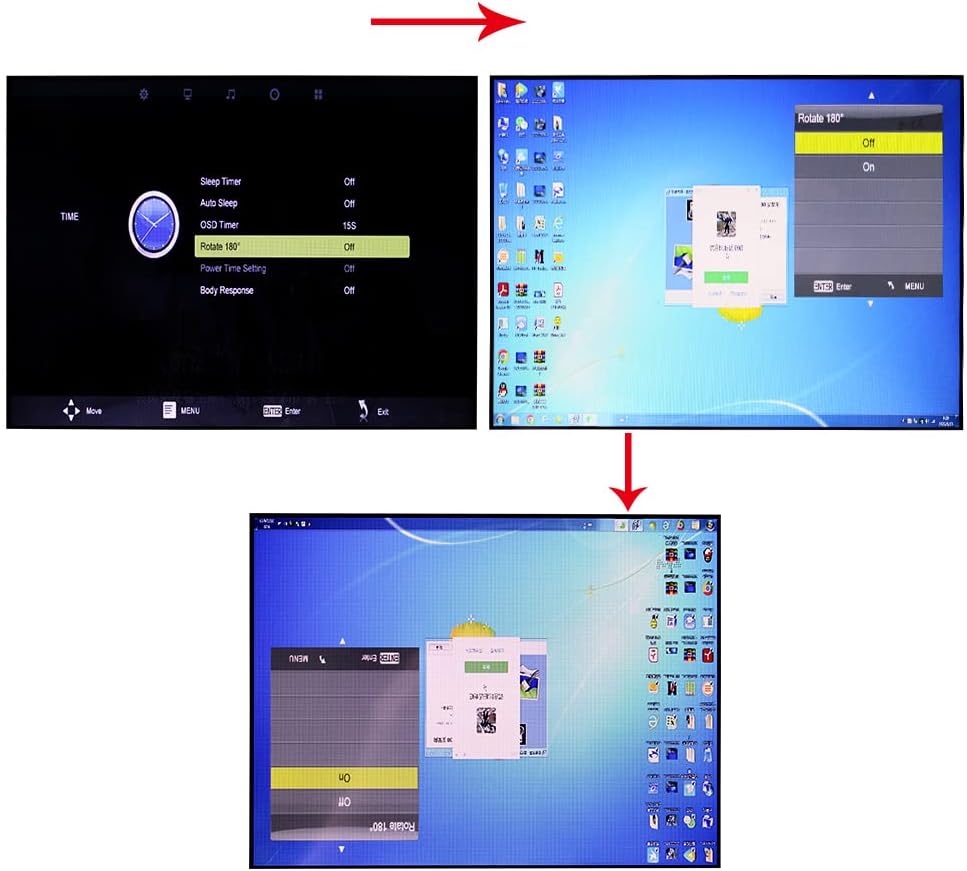

- Plug and play: Connecting the cables and port as link picture details ,power on ,enter H/D/USB signal ,the screen can work well ,This panel support image 180 degree rotation, for DIY monitor using.
- Packing lists: 1× USB LCD Control Board VS-TY2660H-V827,1× 7inch VS070T-006A 700nit high brightness LCD Screen,1× Keyboard With Cable
| UPC | 619438596995 |
|---|---|
| Brand | FanyiTek |
| Brightness | 700 cd/m² |
| Resolution | SVGA Wide |
| Item Weight | 0.38 Kilograms |
| Screen Size | 7 Inches |
| Aspect Ratio | 1.71:1 |
| Display Type | ips |
| Manufacturer | FanyiTek |
| Model Number | VS-TY2660H-V827 |
| Screen Finish | Matte |
| Viewing Angle | 85 Degrees |
| Contrast Ratio | 500:1 |
| Total Usb Ports | 1 |
| Has Color Screen | Yes |
| Native Resolution | 1024x600 |
| Display Technology | IPS |
| Additional Features | Portable |
| Hardware Connectivity | Unknown |
| Connectivity Technology | USB |
| Specific Uses For Product | Gaming |
| Display Resolution Maximum | 1024 x 600 |
