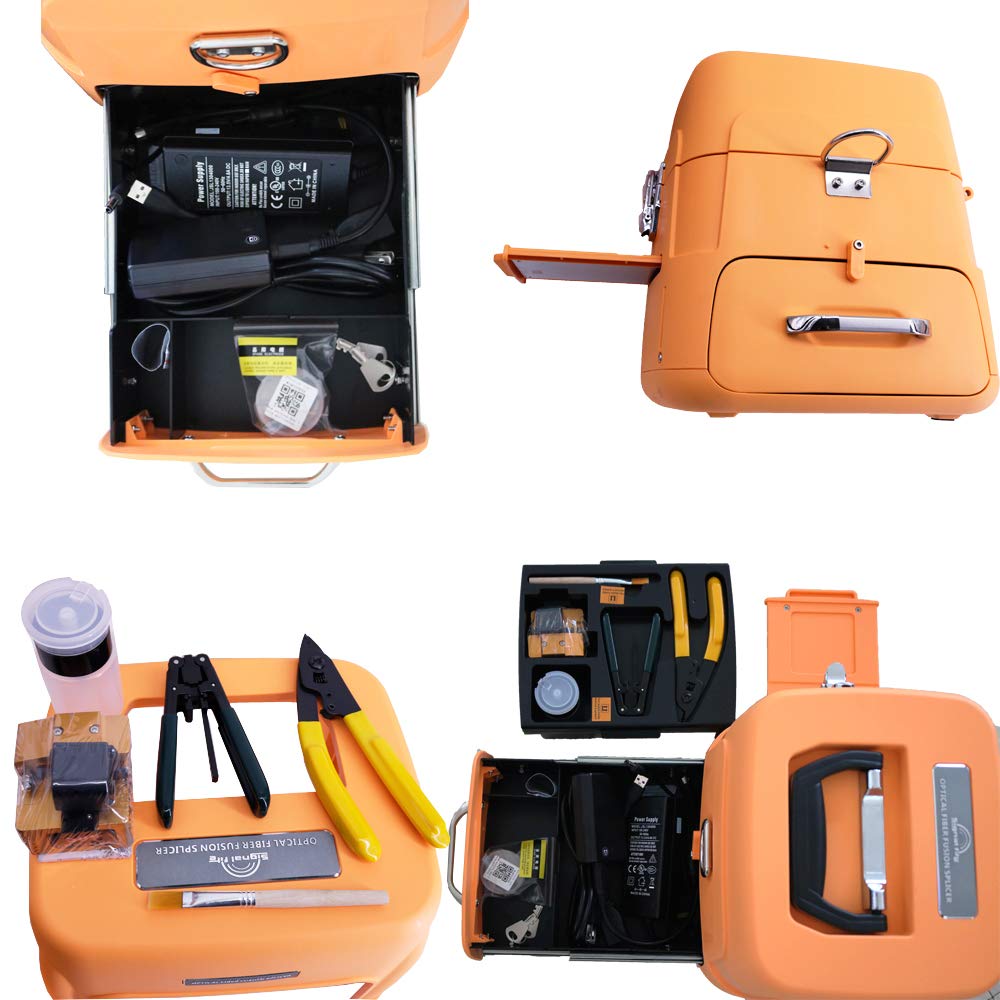

AI-9 Automatic Fiber Optical Fusion Splicer AI-9 Fiber Splicing Machine Tool Accessories Set Expanded 300 Times 5-Inch TFT Display
Product details
| Management number | 211816342 | Release Date | 2026/04/06 | List Price | $479.60 | Model Number | 211816342 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Specification:Condition: 100% Brand NewSplicing Time: 5sHeating Time: 15s Heating Method: Automatic Heating (Preheating)Focusing Mode: Six Motor Auto FocusingApplicable Fibers: SM (G.652 And G.657), MM (G.651), DS (G.657), NZDS (G.655)Splice Loss: 0.025dB (SM), 0.01dB (MM) 0.04dB (DS / NZDS)Control Technology: Real-Time Control and Calibration With ARCReturn Loss: Better Than 60DBFiber Diameter: Cladding Diameter: 80-150um,Coating Diameter: 100-1000umFiber Cutting Length: Coating Less Than 250um: 8-16mm,Coating Less Than 250-1000um: 16mmSoftware Update Length: Automatic Update; Button Time Update: 1 SecondVisual Fault Locator: Power: 15mw, 2hz Flicker and Constant Brightness ModeBuilt-in Lighting: Easy to Operate at NightTension Test: Standard 2NFiber Holder: 3-In-1 Fiber Holder, SM, MM, Bare Fiber, Pigtail, Rubber Insulated Multi-Cable CableMagnification: 300 For X or Y View and 150 For X or Y ViewScreen: 5-Inch TFTColor Display Stitching Mode: Normal / High Accuracy StitchingSplicing Method: Fully Automatic, Step By StepBuilt-In Battery: 7800 MAh Large Capacity Lithium Battery, Charging Time ≤3.5 HoursPower Supply: Input AC100-240V 50 / 60Hz, Output DC13.5V / 4A, Can Identify the Current Power Mode, Real-Time Detection of Battery Power OperationConditions: Temperature -15~ + 50℃, Humidity: <95% Rh (No Condensation)Working Altitude: 0~5000m. Resistance to Maximum Wind Speed: ≤15m/SHeat Shrinkable Tube: 60mm, 50mm, 40mm, 25mmSize: Approx. 12.2 * 13 * 14.8cm / 4.8 * 5.1 * 5.8in Package List:1 * Fiber Cleaver,1 Pair of Spare Electrode,1 * Wire Stripper,1 * Pliers ,1 Set of Hex Wrench,1 * Fiber for ARC Calibration,1 * Strap,1 Set of Power Adapter,1 * Alcohol Bottle,1 * Brush,1 * User Manual,1 * Stool
- Adopt the latest core alignment technology, with auto focusing and six motors
- The machine uses industrial quad-core CPU, fast response time.
- 5-inch 800X480 high-resolution screen for easy and intuitive operation
- Up to 300 times the magnification of the focusing makes it very easy to observe the fiber with eyes
| UPC | 761272054763 |
|---|---|
| Color | Black&Silver |
| Model | AI-9 |
| Brand Name | Graigar |
| Style Name | Industrial |
| Manufacturer | Graigar |
| Power Source | Battery Powered |
| Measurement Type | Voltmeter |
| Specification Met | Arc, Ce |
| Upper Temperature Rating | 50 Degrees Celsius |
