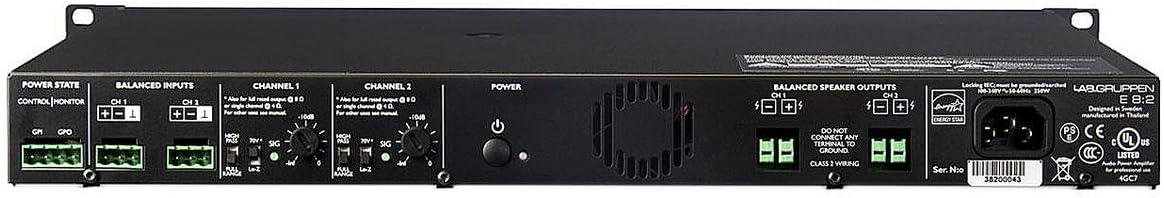

Amplifier with 2 Flexible Output Channels (E82US)

High efficiency amplifier with low power consumption and minimized heat generation lowers demands on the installations' Mains distribution and cooling systems. Idea outputs stage based on proprietary, state-of-the-art Class-D amplifier technology for superior performance. Comprehensive fail safe circuit protection ensures continued operation even under reduced operating conditions. Auto-standby and auto-power-on reduces power consumption to below 1 w in non-operating cycles. Rail sense limiter (RSL) greatly reduces signal clipping and ensures simple configuration for constant voltage and low impedance loads. Built in 50 Hz high pass filter selectable per channel available on rear panel switch. Per-channel attenuation knob and signal LED on rear panel for simple commissioning. Efficient cooling with temperature-controlled fan with front to back airflow. Aluminum front panel with power and temperature LEDs and per-channel signal and limit LEDs. Gpio connector with power control and indication for further system integration. Balanced high-quality analog inputs and amplifier outputs on detachable screw terminals. 10-Year warranty program. Designed and engineered in Sweden.

• Lab Gruppen e 8: 2 us, 800 watt amplifier with 2 flexible output channels for installation applications
• 800 W amplifier carrying 2 flexible output channels in a high power density 1 rack unit form factor saves rack space and system cost.
• Energy efficient with energy Star certification for supreme Green credentials and exceptionally low lifetime running costs.
• Flexible intellidrive permits delivering the 2 x 400 W at constant voltage 70 V or low impedance (2, 4 and 8 ohms) on any Channel.
• Asymmetric Channel loading allows mixing and matching loads with different impedances to maximize overall system efficiency and inventory utilization.
