AT51X8 Multi-Channel Resistance Tester 1μΩ~300KΩ, Maximum Display 30000 Numbers
Product details
| Management number | 211159944 | Release Date | 2026/04/04 | List Price | $719.20 | Model Number | 211159944 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
AT51X8 is a newly designed multi-channel resistance tester with high precision, wide range and parallel measurement, which can test 8 channels simultaneously. Use high performance ARM microprocessor control. True color 3.5 "LCD can display 8 resistance values at the same time, and each channel can be set up a separate comparator, AT51X8 can test resistance of 1μΩ ~ 300KΩ, (fixed range), maximum display 30,000 numbers. For automation equipment, RS232C and HANDLER are available Interface output GD/NG signal to improve production automation test capability!
- Signal source:Maximum current :<1A,Test speed:30ms/ channel (manual range)
- Trigger mode:Internal trigger, external trigger, manual trigger.
- Standard interface:RS-232C interface (SCPI instruction set), HANDLER(PLC interface)USB interface

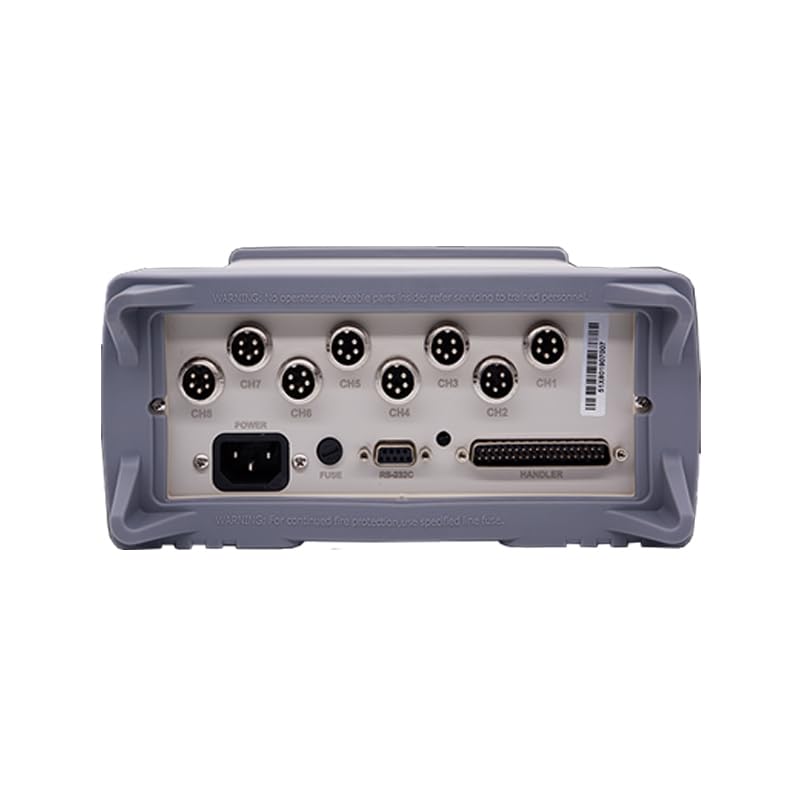

- Test terminal:Each route has four shielded ends (including two detecting ends and two driving ends)

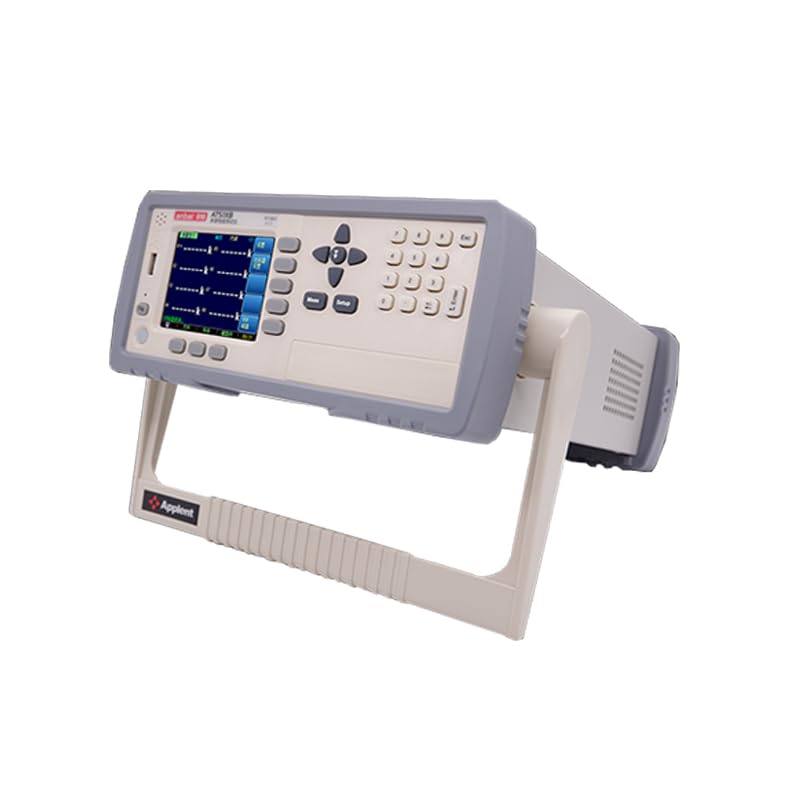

- Display:3.5-inch LCD display, multiple resistors display simultaneously
| Color | Gray |
|---|---|
| Model | AT51X8 |
| Brand Name | Tonghui |
| Style Name | Industry |
| Manufacturer | Tonghui |
| Power Source | Corded Electric |
| Included Components | ABS |
