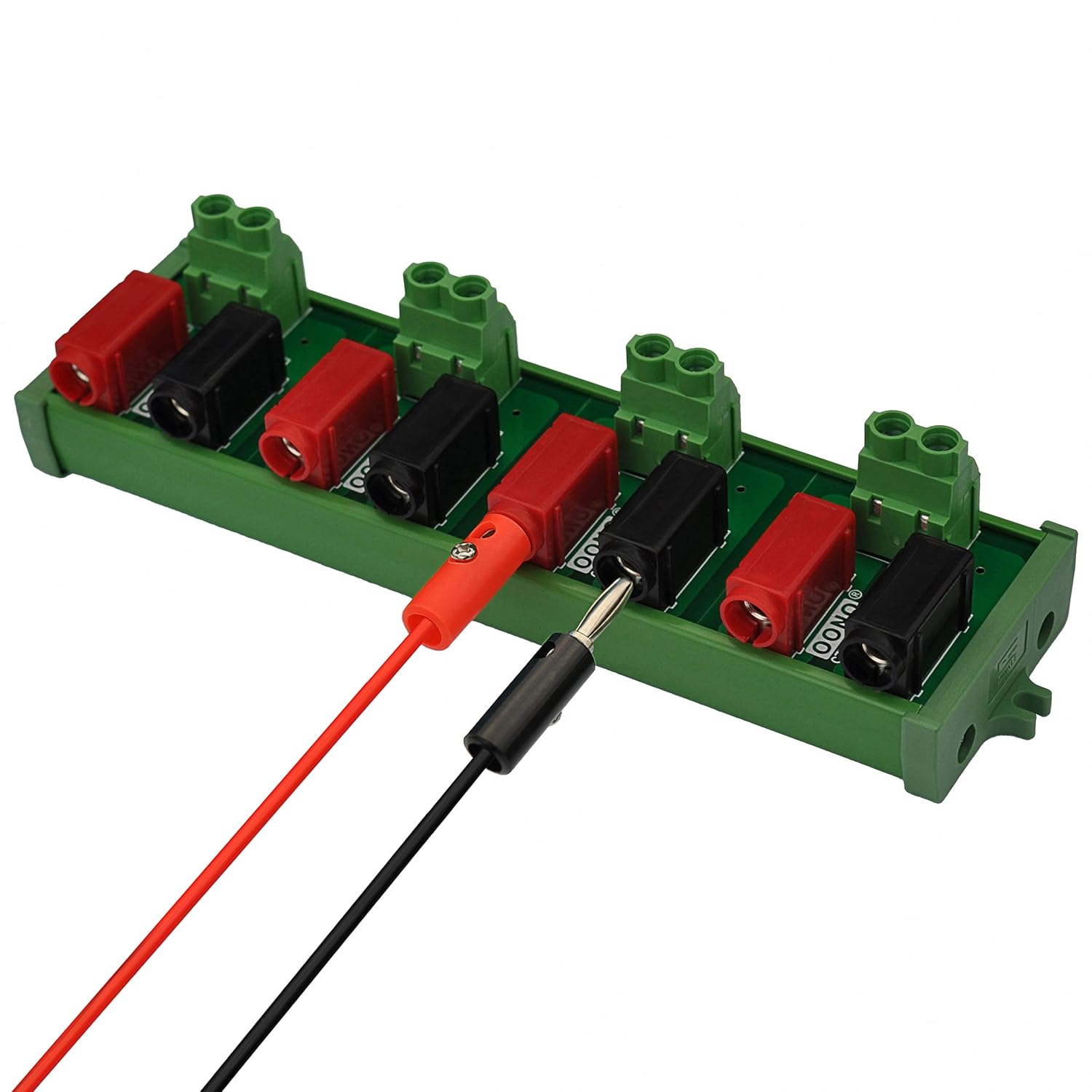

Banana Jack Breakout Board Module (4x2 Positions, Screw Mount)
Product details
| Management number | 211028078 | Release Date | 2026/04/04 | List Price | $12.80 | Model Number | 211028078 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
1, Screw Mount 4 x 2 Positions Banana Jack Breakout Board Module. 2, A and B position termianl blocks, maximum current 20 Amp (each position). Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square, Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass. 3, A and B position standard 4mm banana jacks, maximum current 20 Amp (each position). Rated voltage 60V. 4, High quality fireproof nylon material mount carrier. Also included are two M3 x 10mm wood screws, you can easily mount it on a wooden board. 5, Package include: 1PCS 4 x 2 positions banana jack breakout module, 2PCS M3 x 10mm wood screws

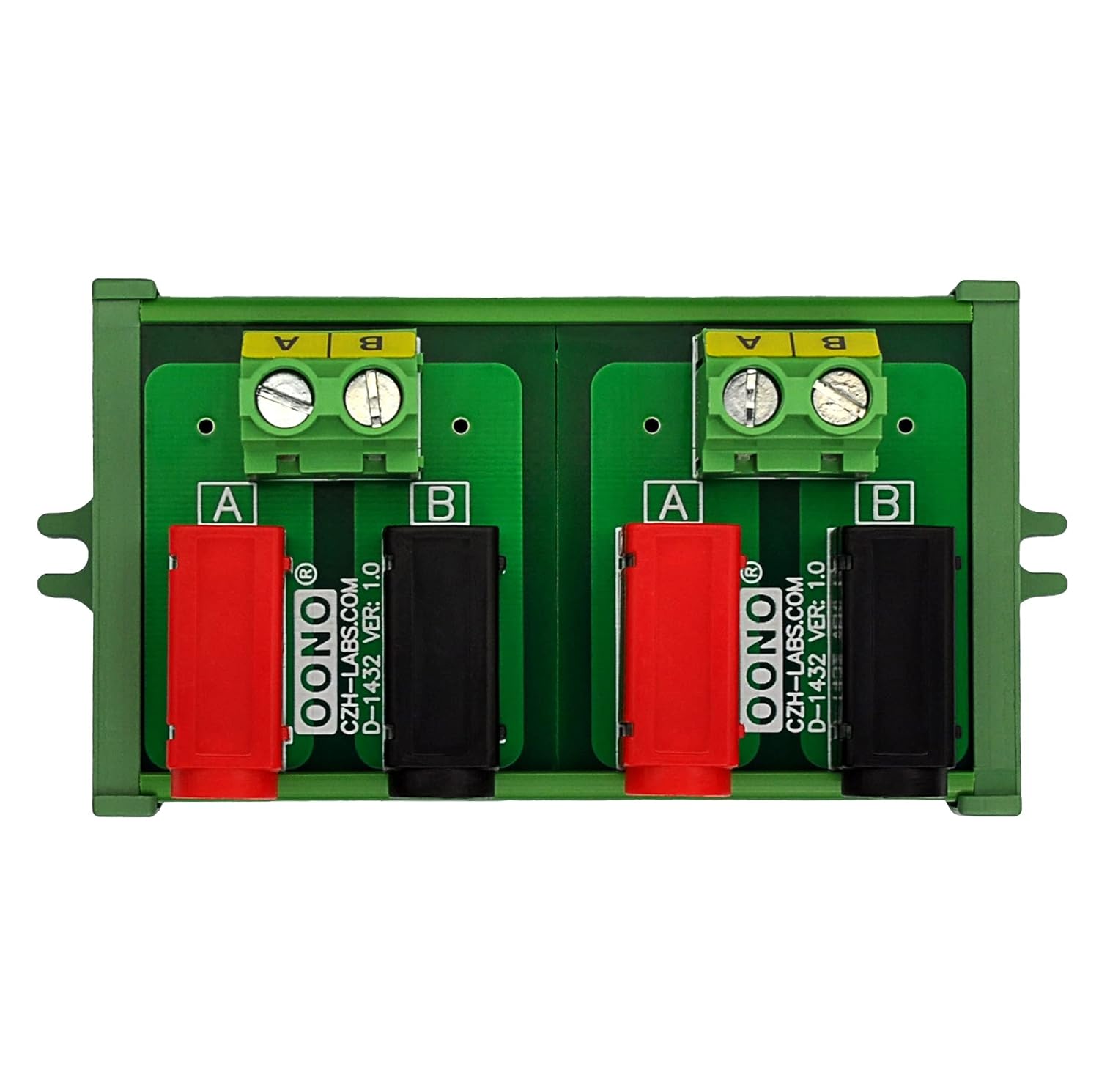

- Screw Mount 4 x 2 Positions Banana Jack Breakout Board Module.
- A and B position termianl blocks, maximum current 20 Amp (each position). Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square, Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- A and B position standard 4mm banana jacks, maximum current 20 Amp (each position). Rated voltage 60V.
- High quality fireproof nylon material mount carrier. Also included are two M3 x 10mm wood screws, you can easily mount it on a wooden board.
- Package include: 1PCS 4 x 2 positions banana jack breakout module, 2PCS M3 x 10mm wood screws
| Color | Green |
|---|---|
| Gauge | 26.0 |
| Model | D-1432 Series |
| Pitch | 7.62 Millimeters |
| Voltage | 60 Volts |
| Brand Name | OONO |
| Part Number | D-1432 Series |
| Manufacturer | CZH-LABS |
| Material Type | Nylon |
| Mounting Type | Screw Mount |
| Connector Type | Screw |
| Current Rating | 20 Amps |
| Number Of Poles | 8 |
| Number Of Contacts | 8 |
| Number of Positions | 8 |
