Baomain Rotary Changeover Switch 660V 63A 4 Position 8 Phase 32 Terminals SZW26-63/0-3.8 Cam Switch
Product details
| Management number | 215611138 | Release Date | 2026/04/12 | List Price | $19.88 | Model Number | 215611138 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Feature: plastic external material, 4 positions , locking action type, 32 screw terminals.It fits for 1.3cm panel thickness.Changeover switch mainly suitable for electrical wiring in the power switch and Squirrel cage type asynchronous motor start-up, reversing, speed switches, also can make the conversion of the control circuit.
- Positions : 4 Positions (0-1-2-3)
- Ui : 660V ; Ith : 63A
- AC-23A Ie:57A AC-3 Ie: 36A AC-4 Ie: 15A Uimp：4kV
- Overall Size : 243 x 65 x 65mm / 9.56" x 2.5" x 2.5"(L*W*T)
- Weight: 1010g. / 2.2 lb; Material: Plastic,Metal
| Color | Not Specified |
|---|---|
| Model | SZW26-63/0-3.8 |
| Wattage | 41980 watts |
| Terminal | Screw |
| Brand Name | Baomain |
| Unit Count | 1.0 Count |
| Switch Type | Rotary |
| Circuit Type | 4-way |

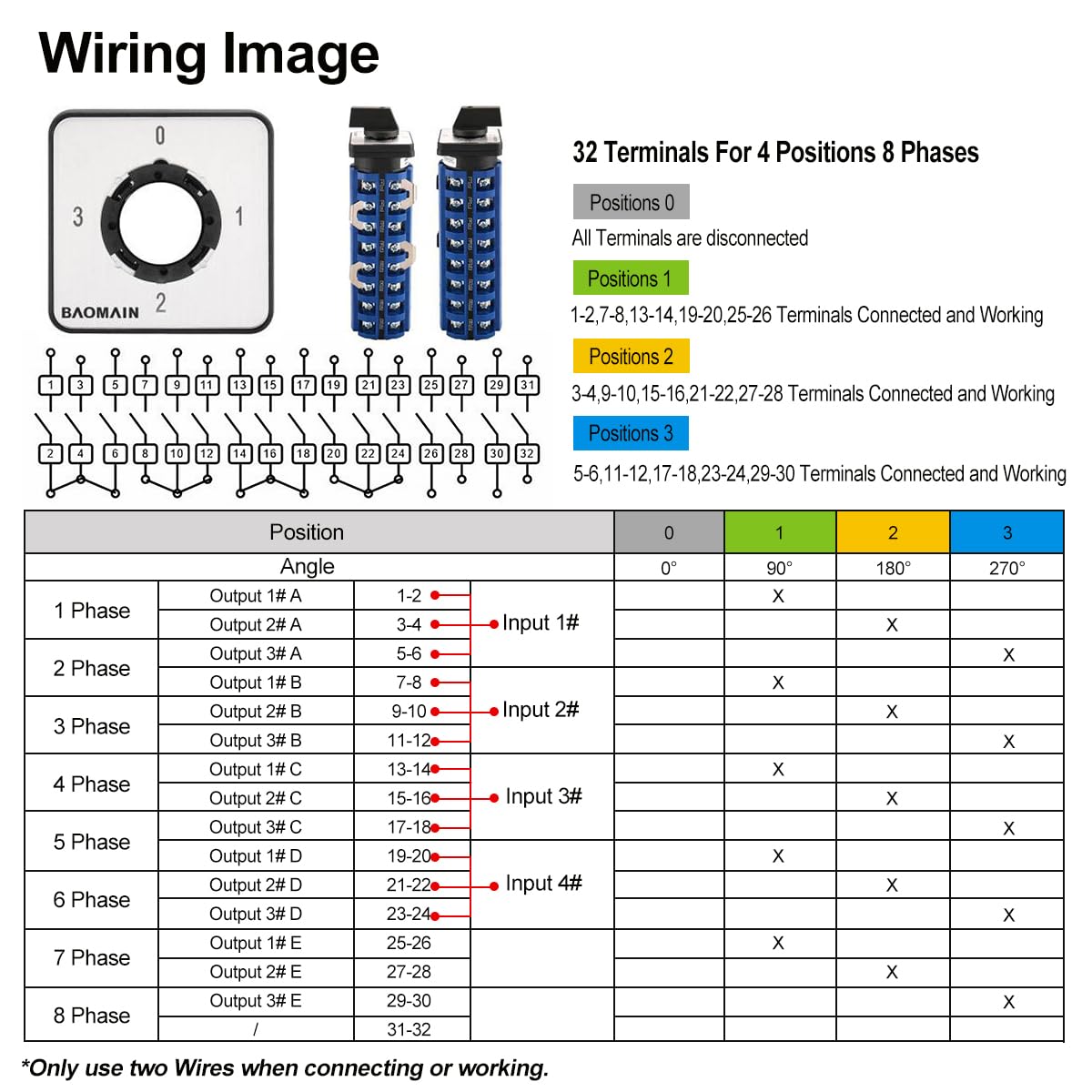

| Contact Type | Normally Closed/Open According to Wiring Image |
| Manufacturer | Baomain Electric |
| Actuator Type | Rotary |
| Material Type | Metal, Plastic |
| Mounting Type | Panel Mount |
| Connector Type | Clamp |
| Control Method | Touch |
| Current Rating | 63 Amps |
| Operation Mode | OFF-ON-ON-ON |
| Item Dimensions | 2.56 x 2.56 x 9.57 inches |
| Number of Items | 1 |
| Contact Material | Copper |
| Operating Voltage | 660 Volts |
| Specification Met | CE |
| Included Components | Screw accessories |
| Number of Positions | 4 |
| Connectivity Protocol | X-10 |
| Upper Temperature Rating | 40 Degrees Celsius |
| International Protection Rating | IP65 |
