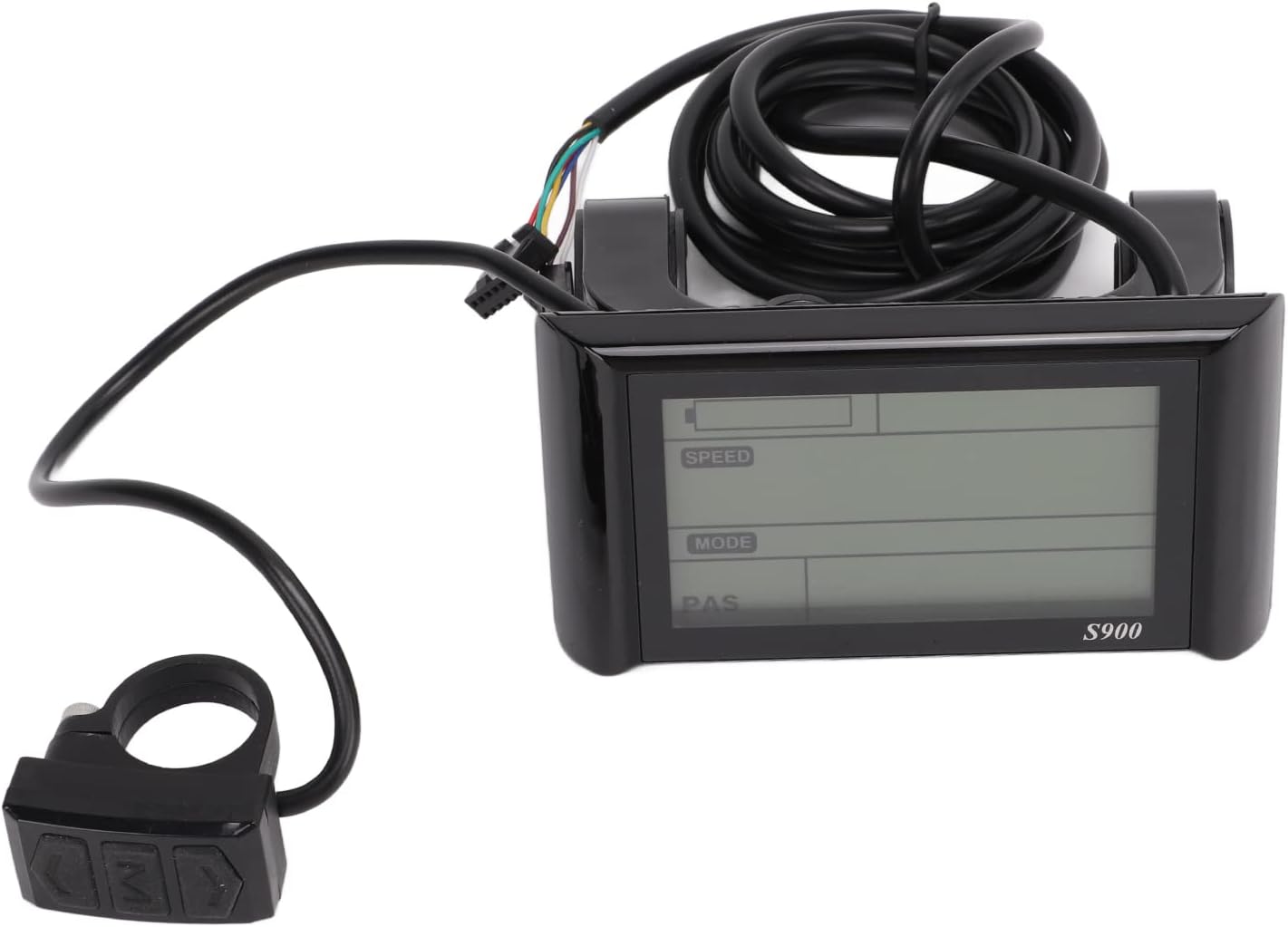

BTER Electric Bicycle Display, Multifunctional S900 36V 48V Universal Upgrade eBike LCD Display with 5 Pin SM Waterproof Socket, Durable Electric Bicycle LCD Display Meter for Bicycle Modification

How to Use: Wiring instructions: 1. Wiring instructions of the controller connector: Red: Meter power cable. Blue: Power control cable of the controller. Black: Meter ground cable. Green: Data receiving line of the meter. Yellow: Data transmission line of meter. 2. Expand the headlight function: Brown line (headlight positive), white line (headlight negative). Operation instructions: The display meter socket connected to the controller meter interface can achieve the function. Specification: Item Type: Electric Bicycle Display Weight: Approx.270g / 9.5oz Material: Plastic Product Size: Meter Approx.11 x 6cm / 4.3 x 2.4in, Line Length Approx.165cm / 65.0in Applicable Handlebar Mounting Diameter: Approx.22.2mm / 0.9in Voltage: 36V 48V Socket: 5 Pin SM Waterproof Socket Application: Suitable For JN Controller And Suitable For Pasion Electric Bicycle Motor Kit Function Description: 1. Display Functions: Speed Display, Power Gear Display, Power Indicator, Fault Hint, Total Mileage, Single Mileage, Headlight Display, Single Driving Time Display. 2. Control And Setting Functions: Power Switch Control, Headlight Switch Control, 6km/H Inching Control, Wheel Diameter Setting, Maximum Speed Setting, Idle Automatic Sleep Time Setting, Backlight Brightness Setting, Voltage Level Setting, PAS Connection. 3. Communication Protocol: UART Package List: 1 x S900 Meter 1 x Manual

• ◆★◆【MULTIFUNCTIONAL S900 DISPLAY】★ The S900 display has multiple functions, can be used as a driving computer and control the entire electric system after conversion.
• ◆★◆【REFLECT THE BATTERY POWER】★ It is compatible with 36V and 48V voltages, which can truly reflect the battery power and record the power consumption in real time to ensure cycling mileage.
• ◆★◆【DATA PRESENTATION】★ While riding the bike, the product will display a lot of useful data on your bike, such as the remaining battery, current speed, average speed, maximum speed, clock, total one way distance.
• ◆★◆【ALTERNATIVE ASSISTANCE LEVEL】★ If PAS is installed, the display allows to select the level of assistance they want. The meter makes it easier for you to view the data on the panel.
• ◆★◆【SATISFACTION GUARANTEED】★ We are very confident in the quality of this display and promise to get you covered for any issues that might occur and provide 30-day quality warranty or refund for it to get your satisfaction.
