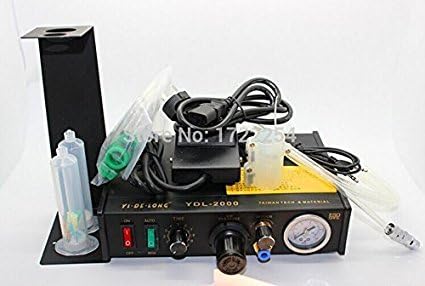

CGOLDENWALL YDL-2000 semi-automatic glue machine by gum machine dispensing controller

parameters: Power supply：: 220V or 110V (optional, by default, we will ship according to the voltage of your Country) Power consumption：: <8 W Air source：: the biggest 0.99 MPa (clean no lubrication of dry air) Spit out the pressure to adjust scope：: 0.05 MPa--0.99 MPa Time out adjusting range：: can be adjusted DIP switch switch program 0.01 seconds-1 second; 0.1-10 seconds; 0.2-20 seconds; 0.3-30 seconds Function mode：: manual mode/semi-automatic mode (quantitative spit) Vacuum back to suck function：: adjustable negative pressure control to 600 millimeters of mercury Repeat precision and spit out the frequency：: precision: + 0.05% frequency: 600 / cent The minimum amount out: 0.01 ml It has two CaoZuoFa: (a) to be automatic operation (auto) (applicable to quantitative, the timing glue) The switch to transfer to the automatic auto position. Adjust the air pressure and the quantity of cement, choose the right needle tip can control the flow of liquid material correctly. Each trample a pedal switch, liquid material will set out according to the quantity of cement from tip to drop the hole. (2) operated by hand (manual) (applicable to the qualitative, the timing glue) The switch to transfer to the manual position. Adjust the air pressure and choose the right needle tip. On the pedal switch, liquid materials will be between the tip hole drops out, loosen the pedal switch liquid material stop drops out.

• Semi-automatic glue machine with high pressure air is set at a time, using the pedal switch control
