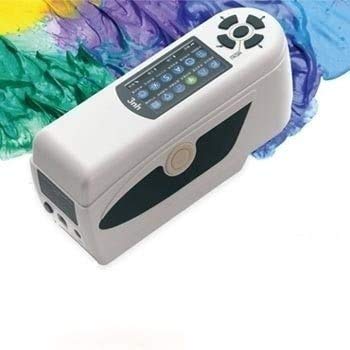

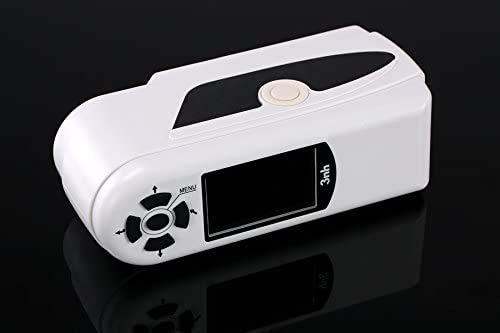

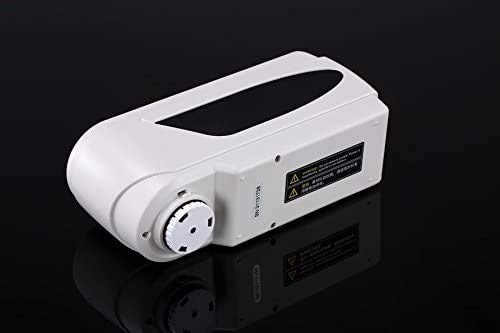

Colorimeter 3nh NH300 Color Difference Meter Analyzer 8/d Aperture 8mm D65 CIE Lab CH CIE Lab Color Software

What can NH300 do for you? NH300 standard configuration software CSCQ3 is able to perform color difference analysis, color difference cumulative analysis, chromaticity index, color sample database management, simulating object color, etc. Specifications Model: NH300 Display Mode/Color Space: CIE L*a*b *C*H* ; CIE L*a*b Color Difference Formula: △E*ab, △L*a*b, △E*C*h Illuminating/viewing geometry: 8/d (8°illumination angle/diffuse viewing) Light Source: LED blue light excitation Detector: Silicon photoelectric diode Aperture: Φ8mm Measuring Conditions: Observer: CIE 10° Standard Observer Illuminant: CIE Standard Illuminant D65 Measuring RangeL: 0 to 100 Repeatability: Standard deviation within ΔE*ab 0.07 (Measurement Conditions: Average of 30 measurements of standard white plate) Battery Life: Approx. 3000 measurements Lamp Life: more than 1.6 million times in 5 years Display: TFT True-color; 2.8 inch@(16:9) Interface: USB RS-232: Baud rate 19200bps Operating Temperature: -10℃ to 40℃ Storage Temperature: -20℃ to 50℃ Humidity Range: less than 85% relative humidity, no condensation Weight: 500g Dimensions: 205 x 70 x 100mm Standard Accessories: AC Adapter; Li-ion Battery; Operation Manual; Software CD; USB Cable; White Calibration Cover; Φ8mm Measuring Aperture Optional Accessories: Mini-printer

• Auto-calibration when starting up, easy to operate;
• High precision and stability;
• Free color management PC software;
• Rechargeable Lithium battery;
• It is mainly applied in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic industries, scientific research institutes, schools and laboratories.
