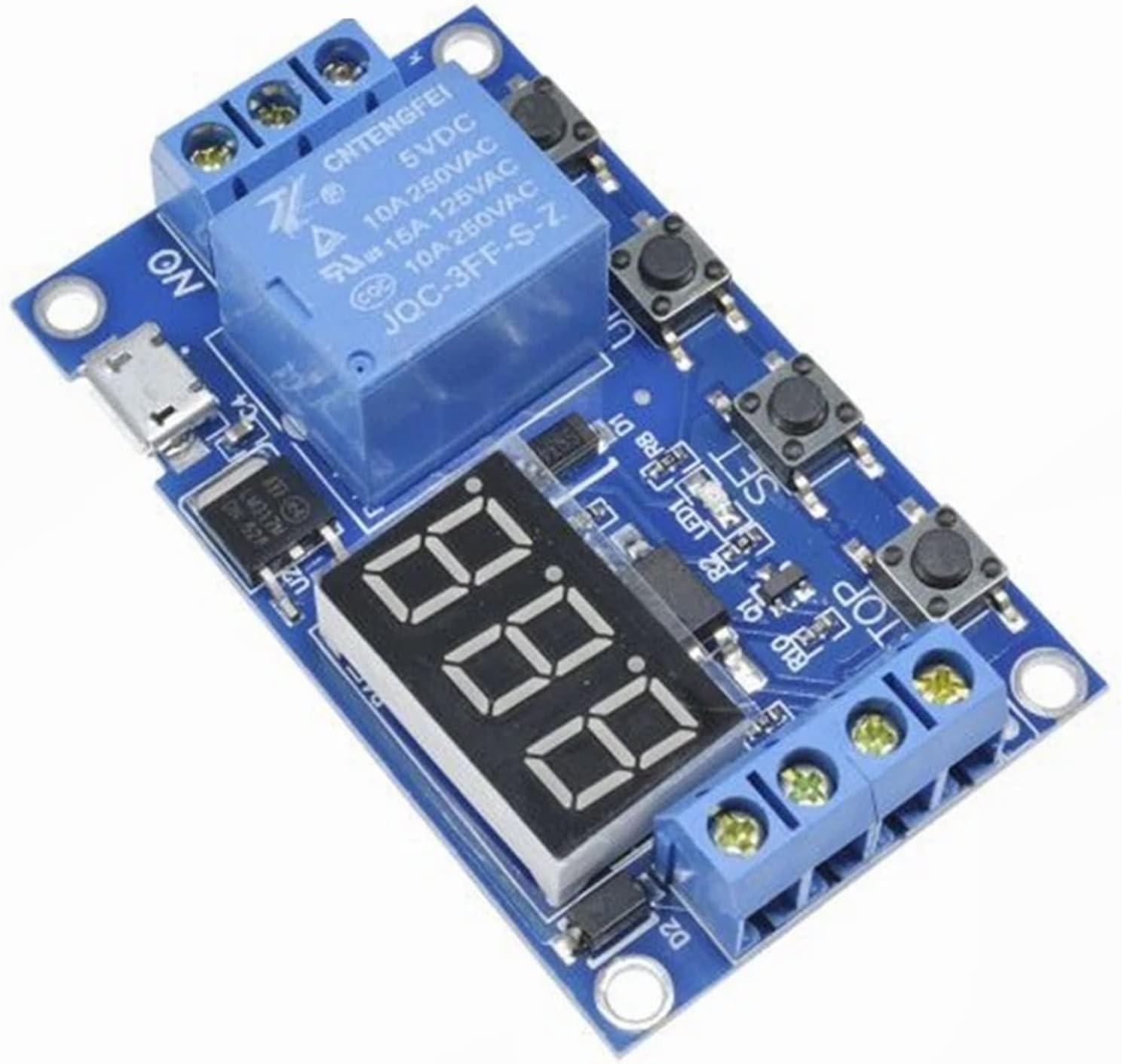

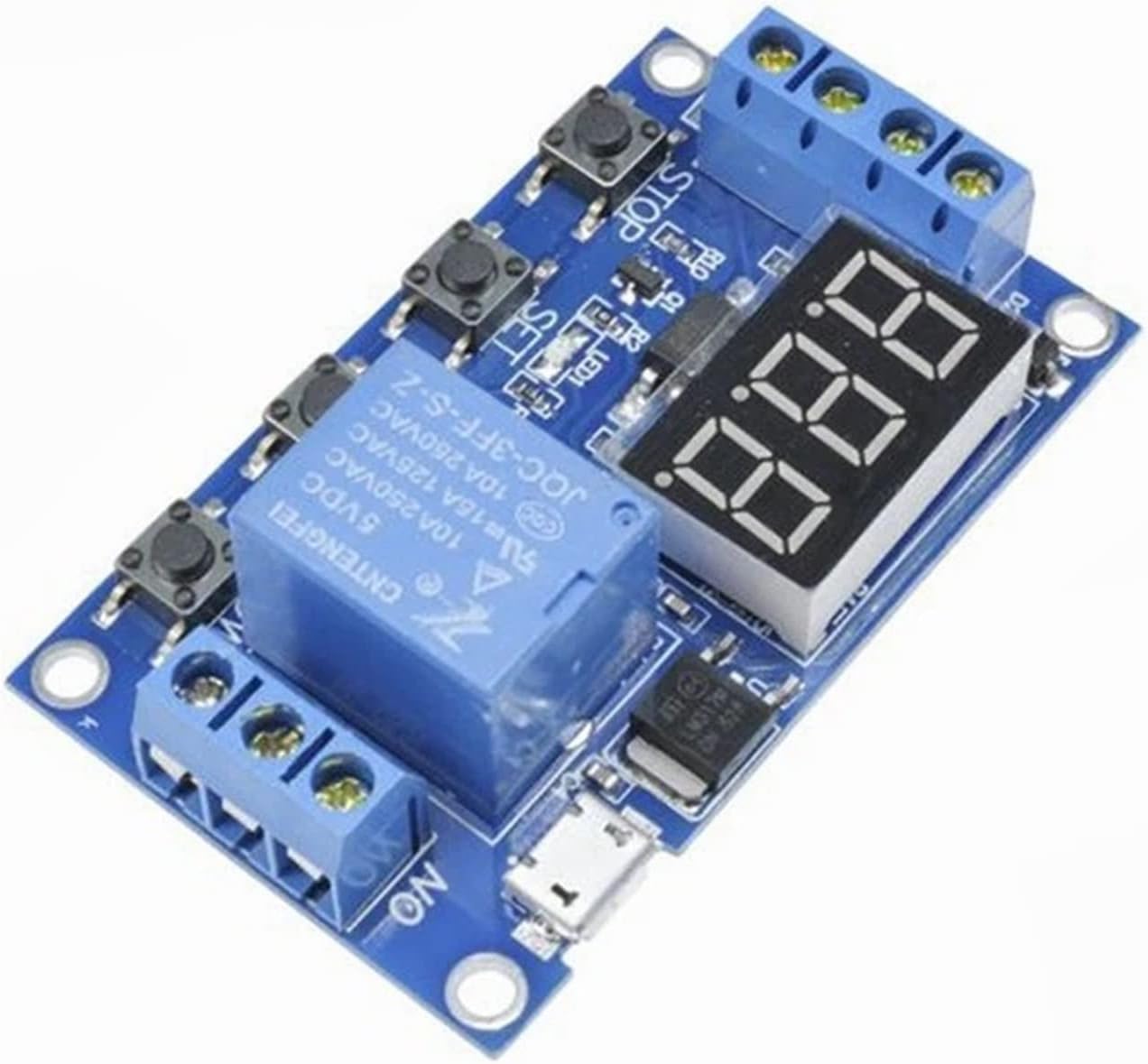

DC 6-30V Support Micro USB 5V LED Display Automation Cycle Delay Timer Control Off Switch Time Relay 6V 9V 12V 24V

relayProduct Features:1. Wide voltage power supply (6 ~ 30V) supports micro USB 5.0V power supply, easy to use;2. The interface is clear and simple, powerful, easy to understand, meet almost all your needs;3. There is a key stop function (STOP key), with reverse polarity protection, reverse polarity does not burn;4. Increase the sleep mode, it enables, without any operation within 5 minutes, turn off the monitor automatically; any key to wake up;5. You can set a different OP, CL, LOP parameters, which are independent of each other, were saved;6. All setup parameters are saved automatically power down.Product parameters:1: Operating voltage: 6--30V support micro USB 5.0V power supply2: The trigger source: high trigger (3.0V-24V) signal with no common ground system to improve anti-jamming capability of the system (also self-shorting common ground)3: Output capability: You can control the DC or AC within 30v 5A within 220v5A4: Quiescent Current: 20mA Operating Current: 50mA5: Timing range: 0.1 seconds -999 minutes continuously adjustable;6: Availability: more than 10 million times;Working temperature: -40-85Celsius;size: 6.2 * 3.8 * 1.7cm7: with optocoupler isolation, enhanced anti-jamming capability, industrial grade circuit boards, set the parameters after power failure memory forever.Special Note: The relay outputs are passive contact, uncharged output to control a line-off role.product manual:Operating mode:P1: After the trigger signal, the relay is turned OP time, and then disconnect; in the OP time, as followsP1.1: Invalid signal triggered againP1.2: Re-timing signal is triggered againP1.3: Reset signal is triggered again, the relay off, stop the clock;P-2: to the trigger signal, the relay after time off CL, OP relay conduction time, after the counting is finished, disconnect relay;P3.1: After the trigger signal to the relay turned OP time, rela
