Delay ON Time Relay 16A, Adjustable Timer Delay Relay GRT8 A1 Voltage Range AC DC 12V to 240V DIN Rail Electronic Relays of Wide Time Delay Range for 0.1 Seconds to 10 Days
Product details
| Management number | 218141907 | Release Date | 2026/05/03 | List Price | $10.40 | Model Number | 218141907 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- FUNCTION MODE: control the closing or opening of the circuit through the time delay function of the relay, GRT8-A series, Delay On device, GRT8-B series, Delay Off device

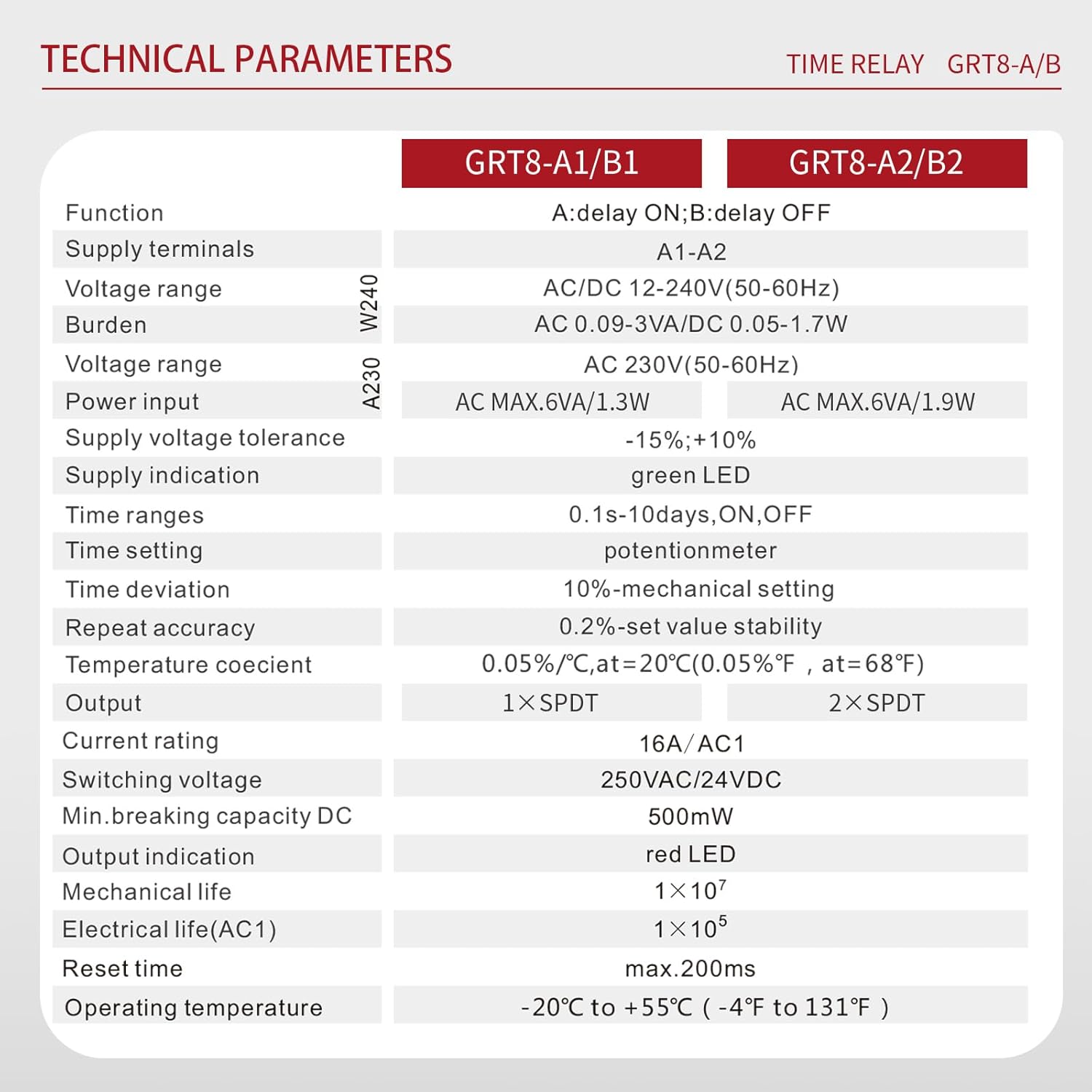

- PARAMETER RANGE: number of outputs：1SPDT（1NO 1NC） rated current: 16A rated voltage: AC DC 12V to 240V (50-60Hz) (power supply allowable range: -15%; +16%) timer delay on range: 0.1s-1s/1s-10s/6s-60s/1min-10min/6min-60min/1h-10h/0.1d-1d/1d-10d

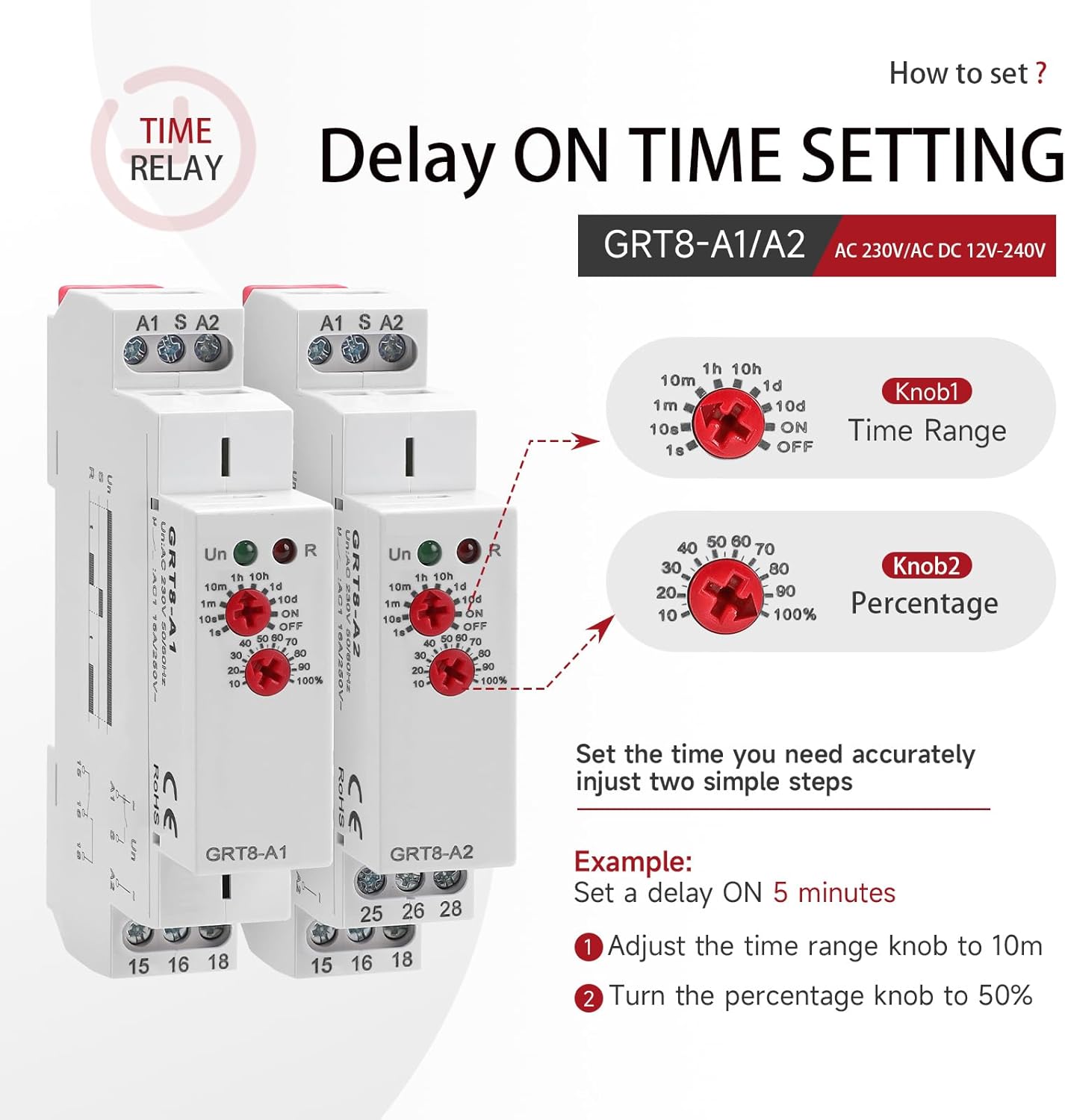

- USE & STATUS: ac dc 12v time delay relay first knob is for delay time gear selection, and the second knob is for time percentage multiples, 120v timer relay delay on relay green indicator light indicates the relay power supply, and the red indicator light indicates the delay and contact status
- MATERIAL & SIZE: din rail timer relay uses an ABS plastic sealed housing and complies with CE, CB, and RoHS, timer relay module measures 2.88 inches x 3.68 inches x 0.9 inches, weighs approximately 2.65 ounces, and is mounted on a 35 mm Din rail.
- WORRY FREE AFTER-SALES SERVICE: We provides a 30 day no reason return and a 3-year warranty for this product. If you have any questions about installation or use, or if you encounter any problems during use, please feel free to reach up to us at any time
| Model | GRT8-A1 AC/DC 12V-240V |
|---|---|
| Brand Name | IGEYAPA |
| Part Number | GRT8-A1 AC DC12V-240V |
| Coil Voltage | 24 Volts (DC) |
| Contact Type | Normally Open |
| Manufacturer | IGEYAPA |
| Mounting Type | DIN Rail Mount |
| Connector Type | Screw |
| Current Rating | 16 Amps |
| Operation Mode | Manual |
| Contact Material | Copper |
| Specification Met | CCC, CE, RoHS |
| Included Components | 1 Delay ON Time Relay GRT8-A1 AC/DC 12V-240V+1*using munual |
| Contact Current Rating | 16 Amps |
| Upper Temperature Rating | 131 Degrees Fahrenheit |
| Maximum Switching Current | 16 Amps |
| Minimum Switching Voltage | 12 Volts |
| EU Spare Part Availability Duration | 3 Years |
