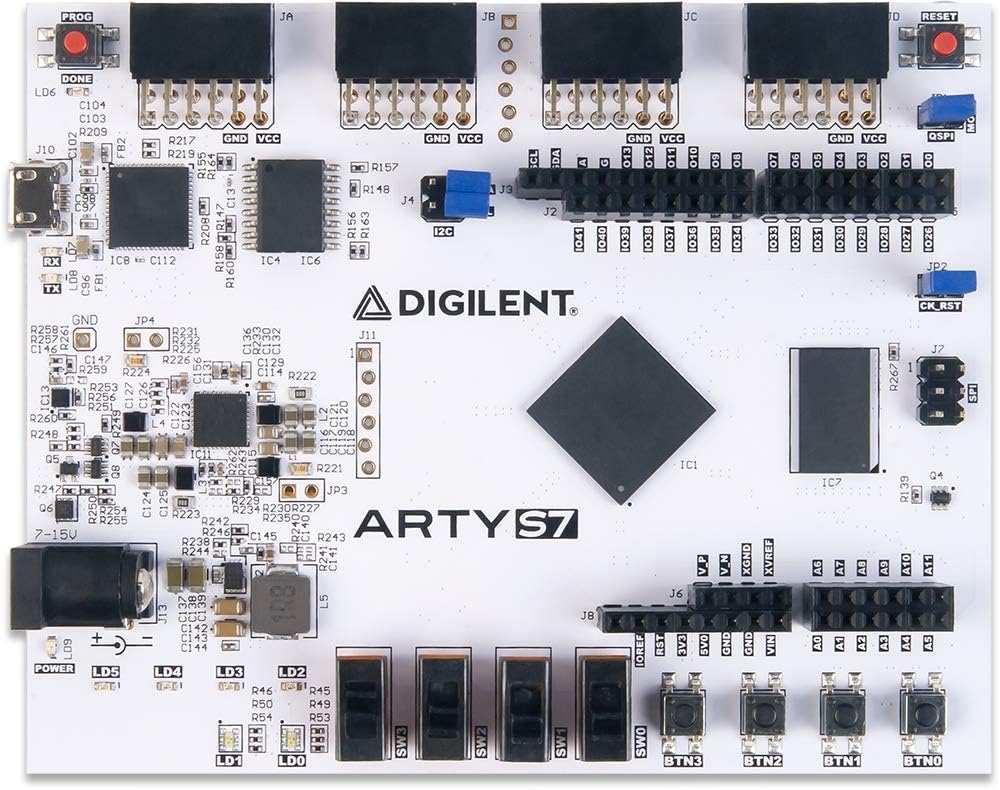

Digilent Arty S7: Spartan-7 FPGA Board for Makers and Hobbyists (Arty S7-25)

The Arty S7 board features new Xilinx Spartan-7 FPGA and is the latest member of the Arty family for Makers and Hobbyists.The Spartan-7 FPGA offers the most size, performance, and cost-conscious design engineered with the latest technologies from Xilinx. Putting this FPGA in the Arty form factor provides users with a wide variety of I/O and expansion options. Use the dual row Arduino connectors to mount one of the hundreds of hardware compatible shields available, or use the Pmod ports with Digilent's pre-made Pmod IP blocks for a more streamlined design experience. Arty S7 was designed to be MicroBlaze ready and comes out of the box ready to use with Xilinx's WebPACK licensing.Features:Arty S7-25FPGA part: XC7S25-CSGA3241 MSPS On-chip ADC: YesLogic Cells: 23,360Slices: 3,650Flip-flops: 29,200Block RAM (Kbits): 1,620Clock Management Tiles: 3DSP Slices: 80Arty S7-50FPGA Part: XC7S50-CSGA3241 MSPS On-chip ADC: YesLogic Cells: 52,160Slices: 8,150Flip-flops: 65,200Block RAM (Kbits): 2,700Clock Management Tiles: 5DSP Slices: 120Internal clock speeds exceeding 450MHz;On-chip XADCProgrammable over JTAG and Quad-SPI FlashSystem Features:256 MB DDR3L with a 16-bit bus @ 650 MHz128 Mbits Quad-SPI Flash100 MHz External ClockUSB-JTAG Programming circuitry(USB Micro cable required, NOT INCLUDED).Powered from USB or a 7V-15V sourceSystem Connectivity:USB-UART BridgeInteraction and Sensory Devices4 Switches, 4 Buttons1 Board Reset Button, 1 FPGA Reset Button4 Green LEDs, 2 RGB LEDsExpansion Connectors4 Pmod connectorsArduino/chipKIT Shield connector

• Arty S7 comes in two FPGA variants: Arty S7-25 features Xilinx XC7S25-CSGA324. Arty S7-50 features the larger Xilinx XC7S50-CSGA324.
• Internal clock speeds exceeding 450MHz
• On-chip analog-to-digital converter (XADC)
• Programmable over JTAG and Quad-SPI Flash
• Powered from USB or any 7V-15V source
