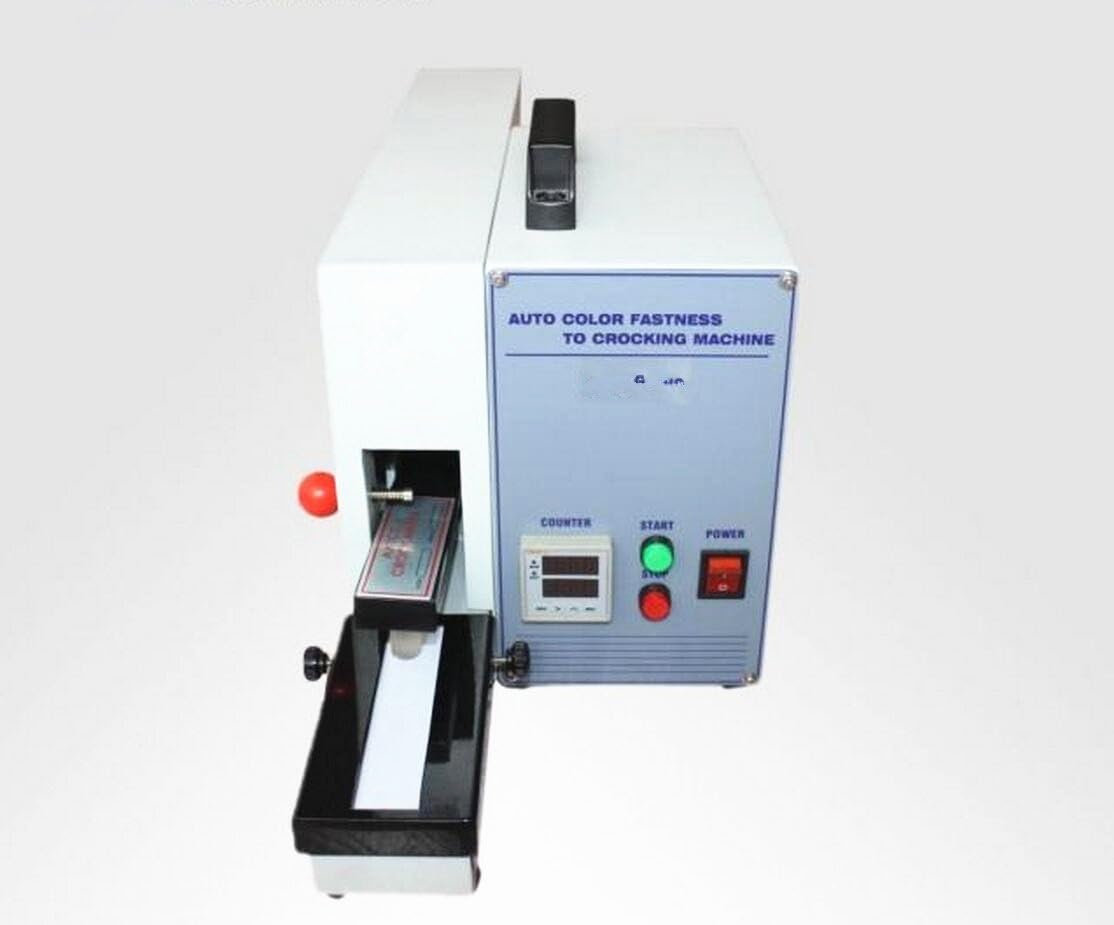

Electric Dry Wet Rubbing Color Fastness Tester Crockmeter Textile Friction Tester

Product Description The instrument is mainly composed of control system and the friction system, fix the specimen with specimen holder at the side of the base which sticks sandpaper, place the friction head wrapped with white cotton cloth on the sample. After rub prescribed times, observe the sample, contrast and evaluate the degree of color adhesion on white cotton fabric with the Gray card, evaluate and judge the dyeing of fabric samples or the stability of surface coating, provide reference data for the evaluation and selection of materials. The instrument is suitable for textiles such as yarn, yarn dyed, printing and dyeing and and all the fabric on or inside the toy product. Technical parameters: Friction head diameter: 16mm?.1 Friction stroke: 104/100mm (adjustable) Vertical pressure: 9N?0% (AATCC standard) Friction head running speed: 104?mm/min (AATCC standard) The number of reciprocating movements in one test: 10 times Friction speed: 60?rpm/min Instrument weight: 9.5kg (21lb) Instrument size: 600mm (24 inches) x 230mm (9 inches) x 260mm (11 inches) Standard friction small white cloth: 50 x 50mm, desizing, bleaching, no fluorescent whitening agent and finishing agent of cotton fabric.

• Friction head diameter: 16mm?.1
• Friction stroke: 104/100mm (adjustable)
• Vertical pressure: 9N?0% (AATCC standard)
• Friction head running speed: 104?mm/min (AATCC standard)
• Friction speed: 60?rpm/min
