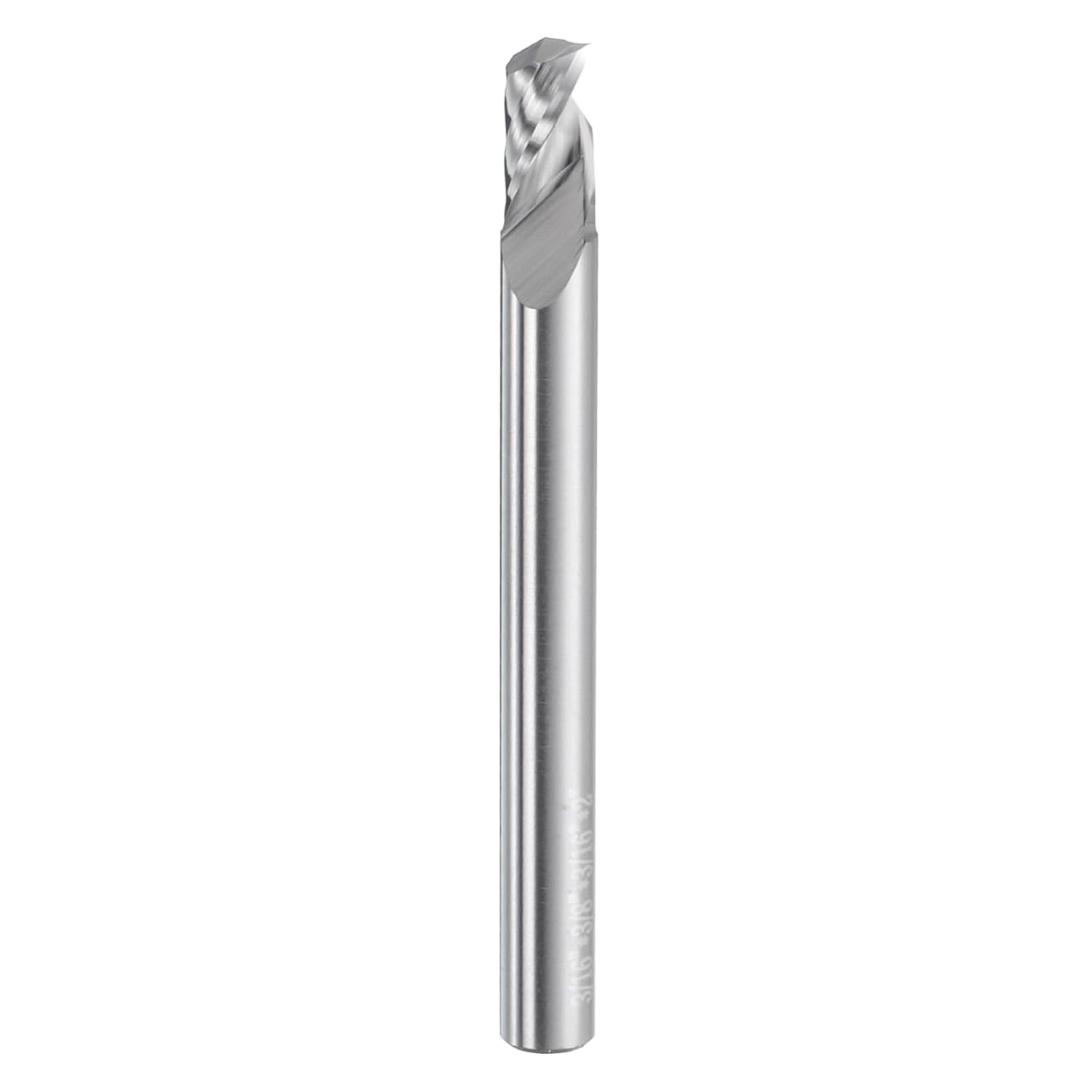

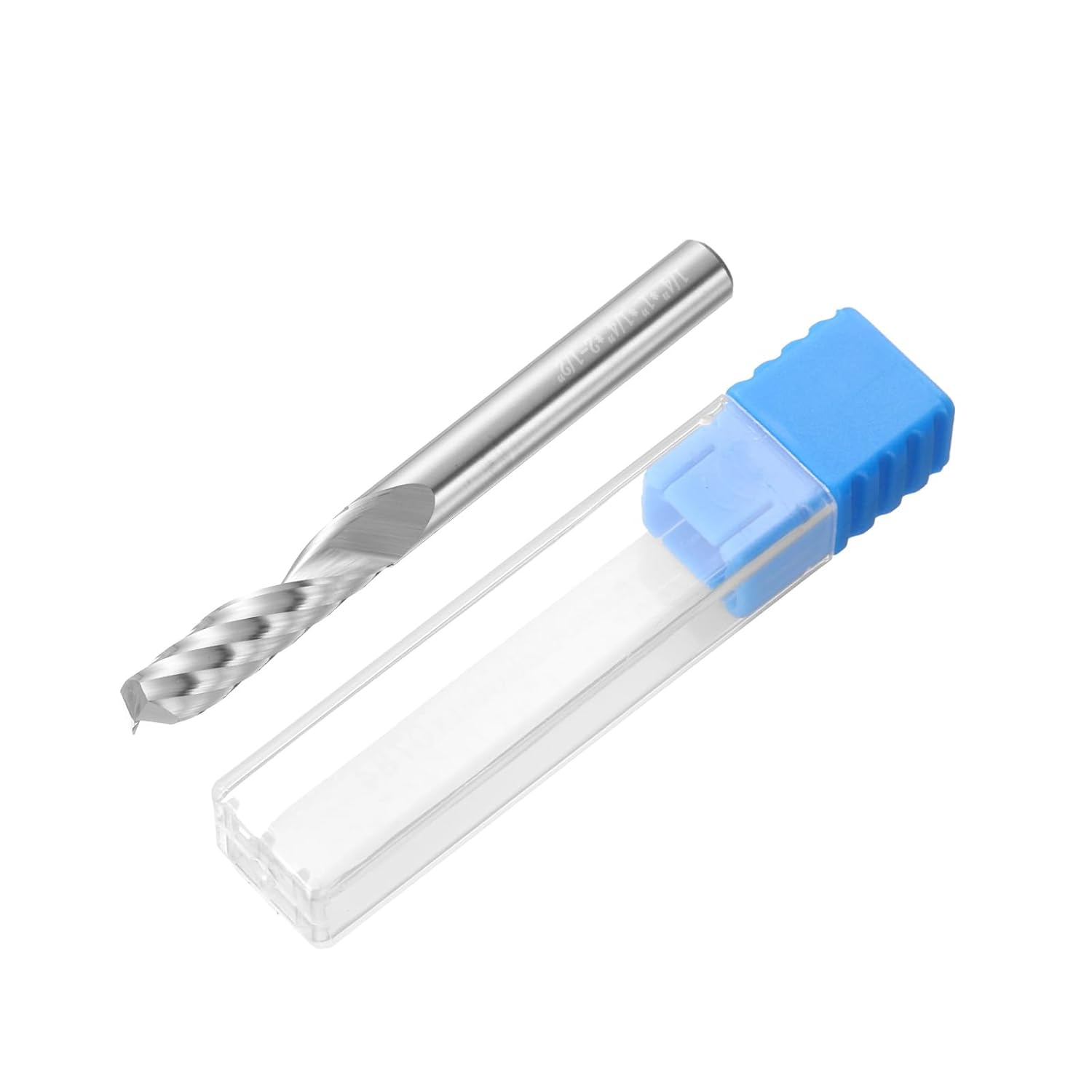

HARFINGTON Spiral Router Bit 1/4" Cut Dia 1/4" Shank Up Cut Solid Carbide 1 Flute CNC End Mill Milling Bits for Wood Plastic Soft Metal (1" Cut Length 2-1/2" Long)
Product details
| Management number | 214323121 | Release Date | 2026/04/12 | List Price | $5.40 | Model Number | 214323121 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- Size - Cutting diameter: 1/4"; shank diameter: 1/4"; cutting length: 1"; total length: 2-1/2" (extra long); helix angle: 30 degree; number of flutes: 1 flute; cutting hardness: HRC44-46.
- Material - Solid carbide milling bit offers high hardness, excellent wear resistance, excellent heat resistance, durability, and good cutting performance. Uncoated cnc mill bit features the base substrate without any additional coatings, good for a wide range of applications.
- Features - Up-cut spiral flutes lift chips upward and away from the cutting area, providing excellent chip evacuation. The upward cutting action also produces a clean, smooth surface finish. Large spiral design of the end mill router bits facilitates the smooth discharge of chips during cutting. Precision cutting edges ensure clean and accurate cutting.
- Applications - Spiral CNC router bits are suitable for side milling, end milling, finish machining, cutting, slotting, engraving etc. Can be used on a variety of materials such as wood, MDF, laminate, plywood, plastic, soft metals (aluminum, brass and copper.), zinc. Used with standard milling machines (CNC and plunge routers), CNC machining centers or engraving machines.
- Notice - Use a suitable coolant or lubrication method during milling operations to dissipate heat and prolong tool life. Make sure the end mill is suitable for the specific application and material being processed. Select an appropriate feed rate and cutting speed.
| Cut Type | Upcut |
|---|---|
| Size Name | 1/4" x 1" x 1/4" x 2-1/2" |
| Brand Name | HARFINGTON |
| Unit Count | 1.0 Count |
| Item Weight | 0.07 Pounds |
| End Cut Type | Center |
| Finish Types | Unfinished |
| Manufacturer | HARFINGTON |
| Material Type | Carbide |
| Cutting Length | 1 Inches |
| Tolerance Held | Precision |
| Cutting Diameter | 6.35 Millimeters |
| Number of Flutes | 1 |
| Number of Cutting Edges | 1 |
