Insulation Resistance Gauge Tester Meter Megohm Meter Insulation Resistance Measurement with Insulation Resistance Range 0.1MΩ to 200GΩ for Transformers Motors Cables Electrical Equipment

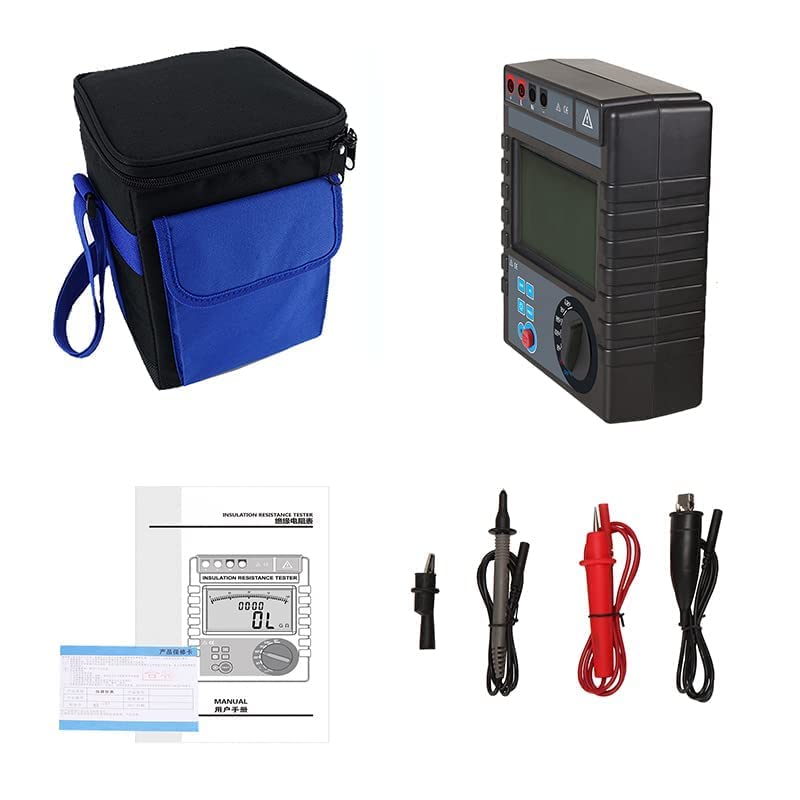

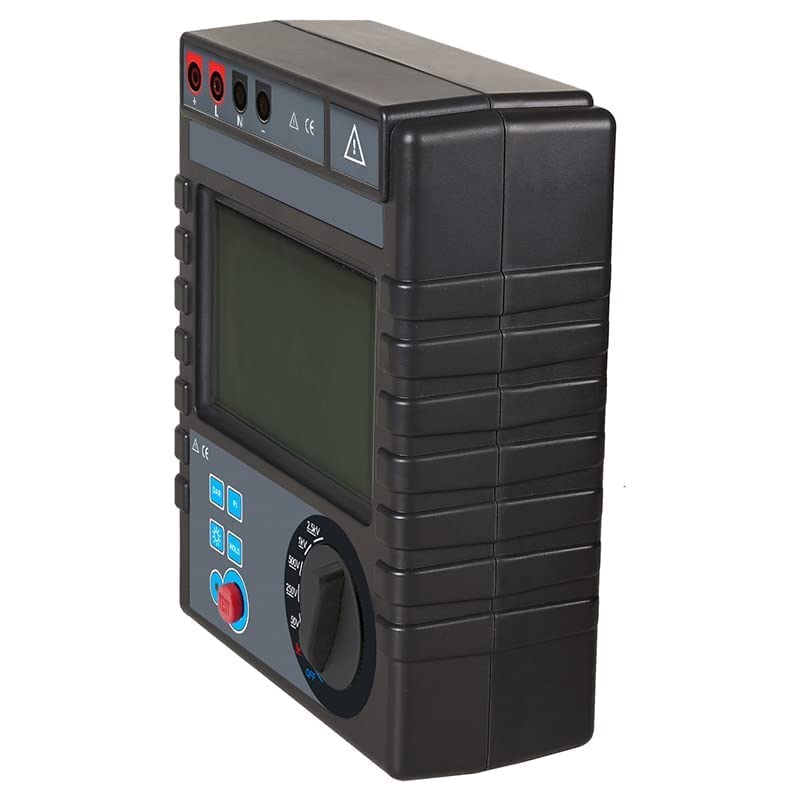

YFYIQI Insulation Resistance Gauge Tester Meter Megohm Meter Insulation Resistance Measurement with Insulation Resistance Range 0.1MΩ To 200GΩ For Transformers Motors Cables Electrical Equipment Specification: ❤Function:Insulation resistance test, AC/DC voltage test❤Rated Voltage:50V;250V;500V;1000V;2500V❤Insulation Resistance Range:0.1MΩ～200GΩ❤Voltage Range:AC/DC 0V～750V❤Output Shout Circuit Current:≥2mA❤Max Capacitive Load:1uF❤DielectricAbsorptionRatioTest (DAR):YES❤ Polarization Index Test（PI):YES❤Shift :Turn the shift rotary knob to select the appropriate gear❤Backlight:Controllable off-white backlight, suitable for dark places❤Display Mode:4 digital LCD display, contrast clear❤Measurement indication:LED flicker and buzzer ring in measurement❤LCD Size:108mm×65mm❤Meter Dimension:212mm×175mm×76mm❤Test Wires:High voltage bar test wire: Red 1PCS; Probe test wire: Black 1PCS; Alligator clip test wire: 1PCS; Alligator clip: 1PCS❤Test Time:The single test time is 1 min. During the test, the user can stop automatically or automatically stop after 1 min, and the screen display measurement data❤Battery Voltage:Battery voltage symbol display, when battery voltage is low will remind to replace the battery in time❤Automatic Discharge:Automatic release the voltage of the measured object, During discharging, symbol flash. Discharge completion symbol extinguish❤Auto Shutdown:15 minutes after boot up, the meter shuts down automatically without any operation❤Power Consumption:Standby : about 40mA(backlight off); Start up with backlight: about 50mA; Measurement: about 100mA(backlight off)❤Weight:1230g❤Working Temperature and Humidity:-10℃～40℃;below B29880% rh❤Storage Temperature and Humidity:-20℃～60℃；below 70%rh Standard Accessories:❤Tester 1pcs❤High voltage rod 1pcs red❤Pen probe test wire 1pcs black❤Alligator clip test wire 1pcs black❤

• 1. Insulation resistance range: 0.1MΩ～200GΩ
• 2. Short circuit current: 2mA MAX
• 3. Voltage range: AC/DC 0V~750V
• 4. Rated voltage: 2500V
• 5. It is suitable for measuring the insulation resistance, absorption ratio and polarization index of various electrical equipment and insulating materials such as motors, cables, switches, electrical appliances, etc.itable for measuring the resistance value of various insulating materials and the insulation resistance of transformers, motors, cables and electrical equipment.
