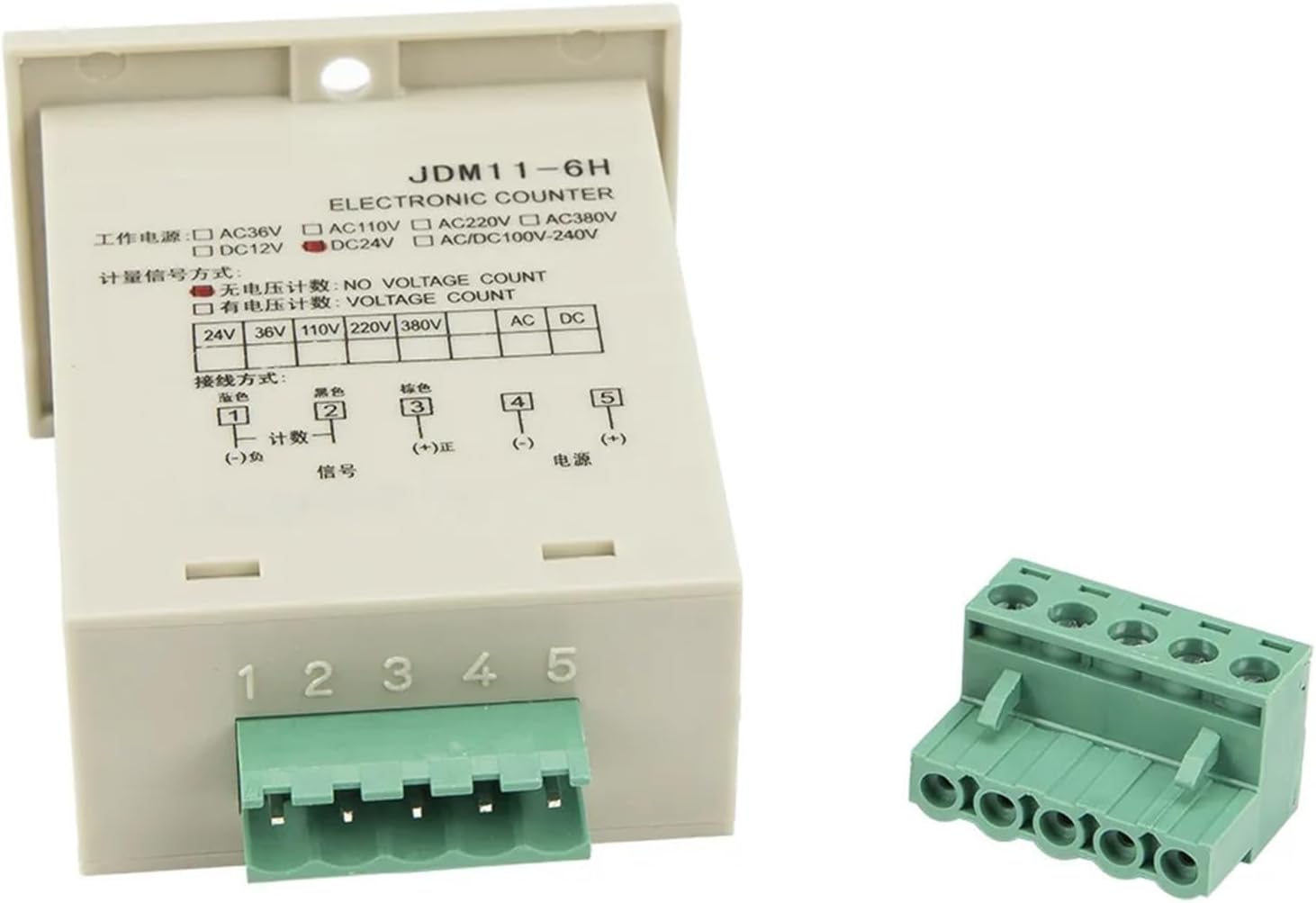

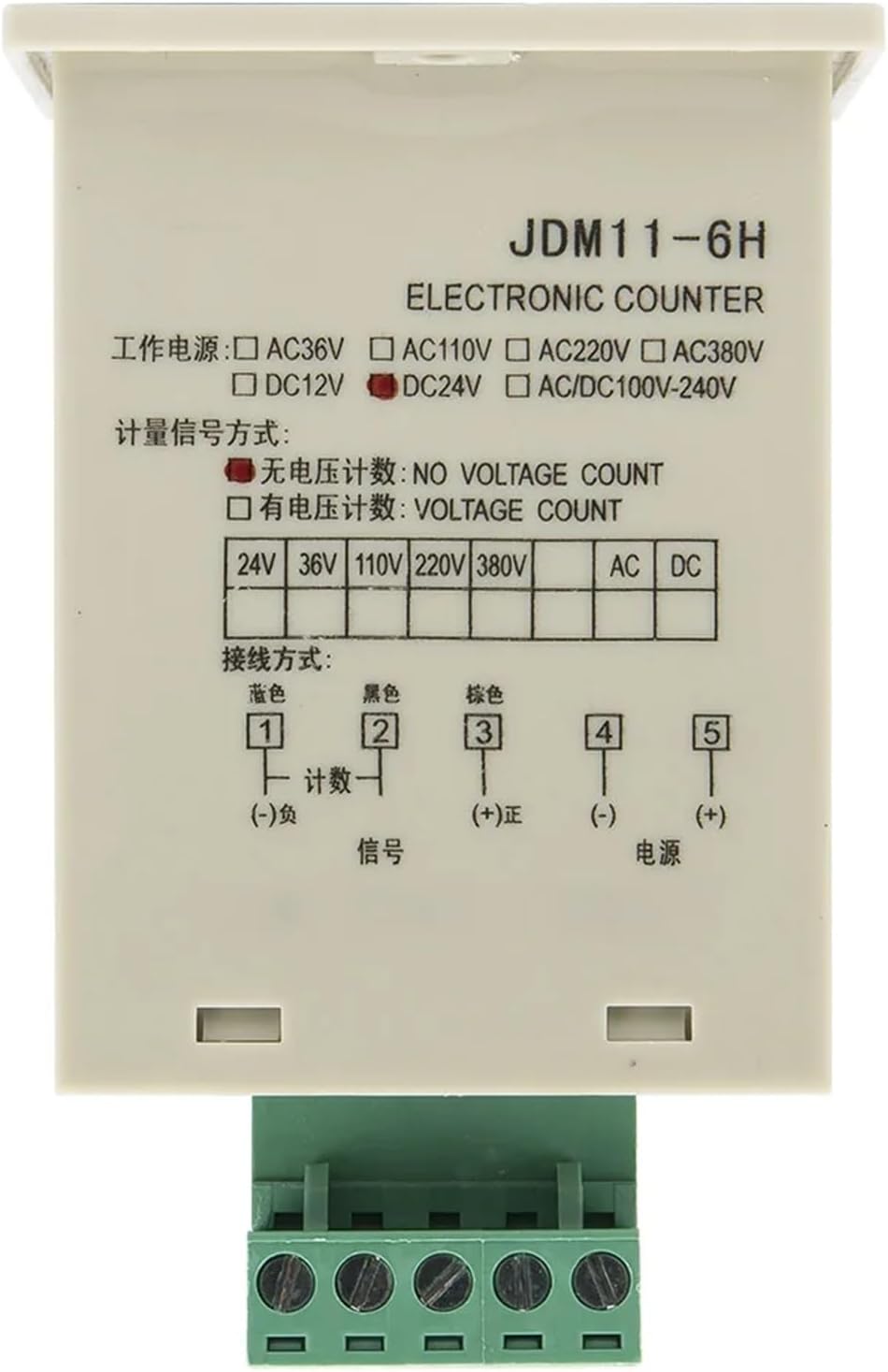

JDM11-6H 5 pin 6-36VDC NPN Sensor Input Digital Electronic Production Counter Relay JDM11 AC 220V 110V 380V 36V DC 24V 12V(12VDC)

relayRelayJDM11 series digital counterModel number and parametersModel numberCounting rangeInput signalRemarkRelated productJDM11-6H-C1-999999ContactOrderJDM11-6H-V1-999999Voltage (level)The input voltage is same as supply voltage if different need to be OrderJDM11-6H-SN1-9999996-36VDC NPN sensorVisiting...JDM11-6H-SP1-9999996-36VDC PNP sensorOrderJDM11-6H-SN NPN sensor input electronic counter model number legendJDM11-6H-SNParent Model NumberSupply voltage220VAC: 220VAC110VAC: 110VACA: 100-240VACD: 12-24VAC/DC24V: 24VAC/DC12V: 12VAC/DC380VAC: 380VAC36VAC: 36VACGeneralModel numberJDM11 seriesSupply voltage12-24VAC/DC; 100-240VAC; 36 380 VACOperating modeUP countingInput SignalContact voltage sensorMax. counting speed10cpsNo-power memory10 years minPower consumption3VA maxIndication method8-segment 4-digital displayPerforate dimensions 511/0x26 1/0 mmCounting error1Reset time0.5sPower reset1sDielectric strength2000Vac 50/60Hz for 1minInsulation resistance100M min. at 500 VDCMountingPanelMatched sensorNPN type: M8 2mm Sn M12 4mm Sn M18 8mm Sn M18 2m SnM30 4m SnPNP type: M8 2mm Sn M12 4mm Sn M18 8mm Sn M18 2m Sn M30 4m SnOperating temperature-5 to 45 °COperating humidity30-85% RH max non-condensingAlias nameJDM11 series counting relay counter relayJDM11-6H-SN NPN sensor input electronic counter related productsNoModel NumberSupply VoltageRelated Product1 JDM11-6H-SN220VAC(110VAC A D 24V 12V 380VAC 36VAC)220VAC; 110VAC; 100-240VAC; 12-24VAC/DC; 24VAC/DC; 12VAC/DC; 380VAC; 36VAC
