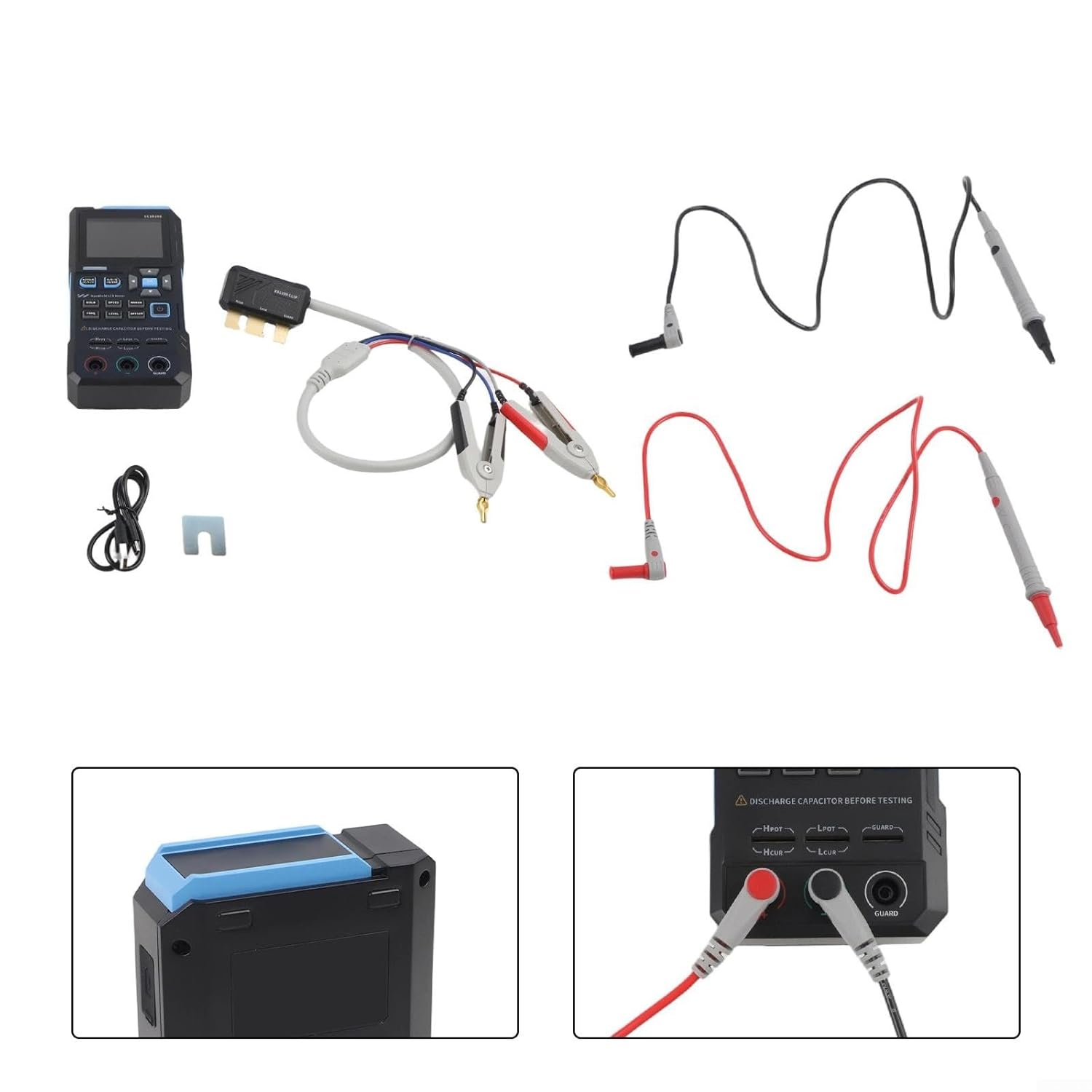

LC1020E Portable LCR Meter With Five Test Frequencies And Kelvin Measurement Support For High Accuracy(LC1020E in English)

Features: 1. High-Precision, Wide-Range Measurement: The LC1020E boasts a basic accuracy of up to 0.3%, reliable and precise professional measurements. It supports a wide measurement range of inductance (0-100H), capacitance (0-100mF), and resistance (0-10MΩ), making it suitable for a wide range of components.2. Multiple Frequencies and Selectable Test Levels: This LCR meter five selectable test frequencies (100Hz, 120Hz, 1kHz, 10kHz, 100kHz) and three test levels (0.1V, 0.3V, 0.6V), providing the flexibility to accurately analyze component characteristics under a wide range of conditions, from general-purpose testing to high-frequency parameter analysis.3. Dual Test Ports for Versatile Versatility and Reliability: The device a convenient three-terminal test socket for quick, everyday measurements, as well as a five-terminal test slot. The five-terminal configuration supports full four-terminal Kelvin measurements when used with professional test fixtures, minimizing impedance errors and the highest measurement accuracy. 4. Intelligent Component Sorting and Data Logging: The intelligent comparison function significantly improves batch testing efficiency. Simply set the nominal value and tolerance (0.1% - 99.9%) to automatically sort components, with pass/fail results confirmed via visual and audio prompts. Data logging mode records the number of pass and fail measurements for effective quality control.5. Portable Design, Clear Display, and Long Battery Life: The LC1020E is designed for laboratory, production line, and field use. Its compact design a powerful 3.7V, 3000mAh rechargeable lithium battery. The large 2.8-inch TFT color screen clearly displays all primary and secondary parameters (L/C/R/Z, X/D/Q/θ/ESR), making it easy to read measurement values anytime, anywhere.Specifications:Part Name: LC1020E Digital Bridge Handheld TesterMaterial: ABSModel: LC1020EColor: Blacksize: As shown1. Display: 2.8-inch TFT LCD2. Basic Accuracy: 0.3%3. Number of Display Digits: Primary Parameter: 4.5 digits; Secondary Parameter: 4.5 digits4. Test Frequency: 100Hz, 120Hz, 1kHz, 10kHz, 100kHz5. Test Level: 0.1V, 0.3V, 0.6V6. Internal Bias: 0.0V, 0.5V7. Measurement Parameters: Primary Parameters: AUTO/R/C/L/Z; Secondary Parameters: X/D/Q/θ/ESR8. Measurement Range: L: 0-100H, C: 0-100mF, R: 0-10MΩ9. Measurement Speed: Fast (4 times/second), Medium (2 times/second), Slow (1 time/second)10. Calibration Function: Open-circuit calibration, short-circuit calibration11. Comparison Function: Calculates the relative error between the measured component value and the nominal value, displays it as a percentage, and provides a filtered result. The nominal value and tolerance can be set, with an adjustable range of 0.1% to 99.9%.12. Recording Function: Checks whether the measured component data meets the set nominal value and tolerance, and records the number of successful and failed measurements. 13. Test terminal configuration: three-terminal, five-terminal14. Output impedance: 100Ω15. Communication interface: Type C (virtual serial port)16. Other functions: Language setting, screen brightness, sound settings, auto power off, calibration settings, system information.Package Contents:1. LC1020E LCR meter *12. Data cable *13. Short circuit board *14. Kelvin test clip *15. Test (black *1 + red *1)6. User manual *1

• [HIGH PRECISION MEASUREMENTS] The LC1020E provides an impressive basic accuracy of up to 3%, making it a reliable tool for measuring resistance, capacitance, and inductance across a wide range of components, ensuring your projects maintain precision.
• [MULTIPLE FREQUENCIES FOR FLEXIBILITY] With five selectable test frequencies (100Hz to 100kHz) and three test levels (1V to 0.6V), this LCR meter allows you to analyze component characteristics under varying conditions, from everyday testing to high-frequency applications.
• [DUAL TEST PORTS FOR EFFICIENCY] Featuring both three-terminal and five-terminal test sockets, the LC1020E facilitates quick measurements while minimizing impedance errors when using professional fixtures, thus enhancing measurement accuracy.
• [INTELLIGENT COMPONENT SORTING] Boost your testing efficiency with the intelligent comparison function that automatically sorts components based on set nominal values and tolerances, providing visual and audio for pass/fail results.
• [PORTABLE AND USER-FRIENDLY DESIGN] Designed for lab, production line, or field use, the compact LC1020E features a large 8-inch TFT color display and a long-lasting rechargeable battery, making it easy to read measurements anywhere.
