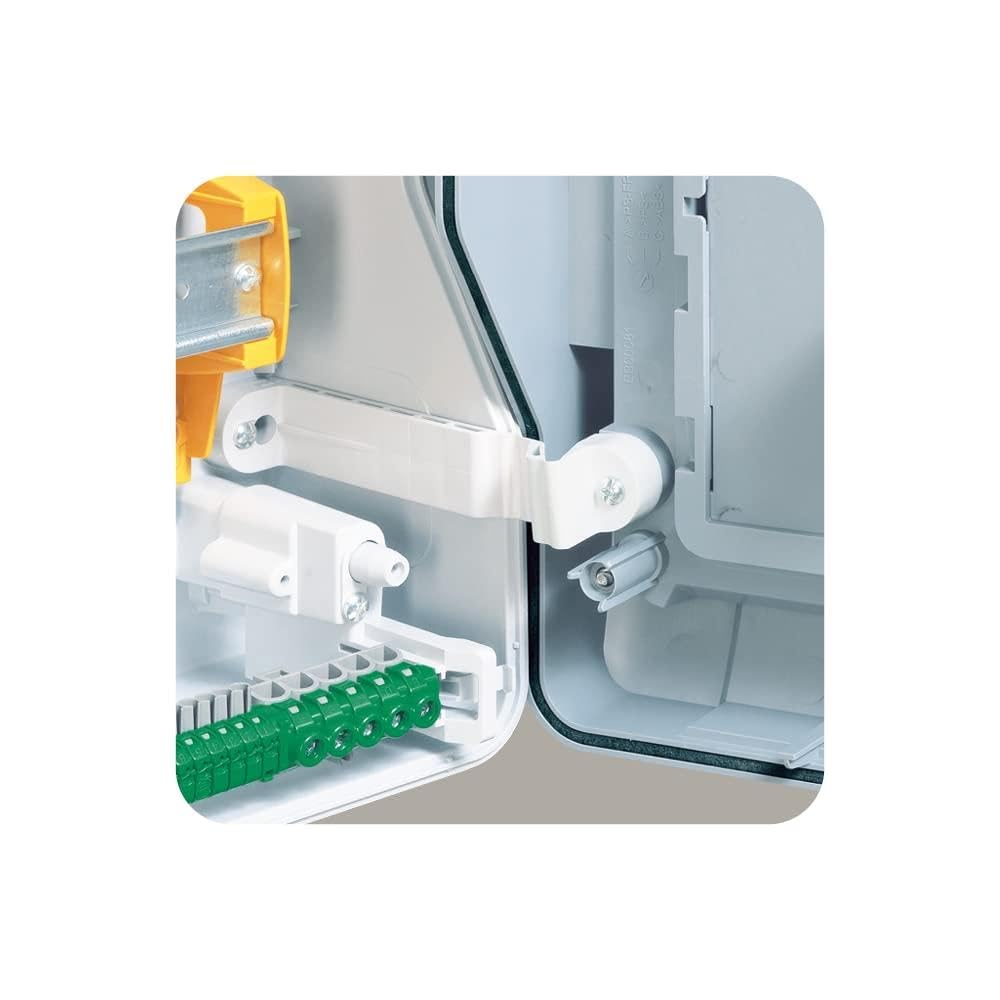

Legrand, Plexo 601987 Wet Room Distributor, Fuse Box, Surface-Mounted, IP65 - IK09, 3 Rows, 54 Modules, Indoor and Outdoor Use, Retrofittable, Protection Class II, -20 to +70 °C, 622 x 448 x 161 mm
Product details
| Management number | 215623748 | Release Date | 2026/04/12 | List Price | $112.40 | Model Number | 215623748 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Surface-mounted distributor IP65 IK09 3-row 54TE H x W x D 622 x 448 x 161 mm. Surface-mounted distributor IP65 protected - IK09 3-row for 54 units (17.5 mm) - Dimensions HxWxD: 622x448x161mm - grey - plastic Manufacturer: Legrand Item number: 601987.
- Optimised cable routing: the generous rail spacing and the height-adjustable support rails (individually dismountable) offer you plenty of space for wiring. The distribution box is 3 rows and can be equipped with 54 modules.
- Quick and efficient installation: the removable device carrier allows wiring outside the distributor (e.g. for pre-wiring in the workshop). The individually removable front covers guarantee convenient access during maintenance work.
- Durability: thanks to the protection class IP65-IK09, the wet room distribution box is protected against jet water from all directions. The handle guarantees an optimal seal thanks to its two-point closure. Protects in the temperature range -20 to +70 °C.
- Versatile: thanks to the high protection class (IP65), the wet room distributor can be used in many ways indoors and outdoors of your home. The transparent door is sealable and you have the opportunity to retrofit it with a lock.
- Cable entries: The supplied cable entries (membrane) guarantee tool-free cable entry. The UV-resistant seal ensures safe long-term water and dust protection.
- CABLE INSERTS (membrane): 13x ø 20 mm, 4x ø 25 mm, 1x ø 32 mm are included. If necessary, cable glands can also be used.
- Cable entry projections: top: 13x diameter 20 mm, 4x diameter 25 mm, 3x diameter 32 mm, bottom: 13x diameter 20 mm, 4x diameter 25 mm, 3x diameter 32 mm, left: 4x diameter 32 mm, right: 4x diameter 32 mm, right: 4x diameter 32 mm breakout cable entry. .
- Technical details: surface-mounted wet room distributor, IP65-IK09, telegrey/silver grey, metric cable entry, incl. membrane entry, 3-row, 54 modules, -20 - +70 °C, 622 x 448 x 161 mm, 601987
| Brand Name | Legrand |
|---|---|
| Phase Type | Three Phase |
| Unit Count | 1.0 Count |
| Item Weight | 2.2 Pounds |
| Manufacturer | Legrand |
| Material Type | Plastic |
| Number Of Circuits | 54 |
| Included Components | Plexo wet room distribution box |
| Item Dimensions L x W x H | 24.49"L x 17.64"W x 6.34"H |
| Global Trade Identification Number | 03245066019871 |
