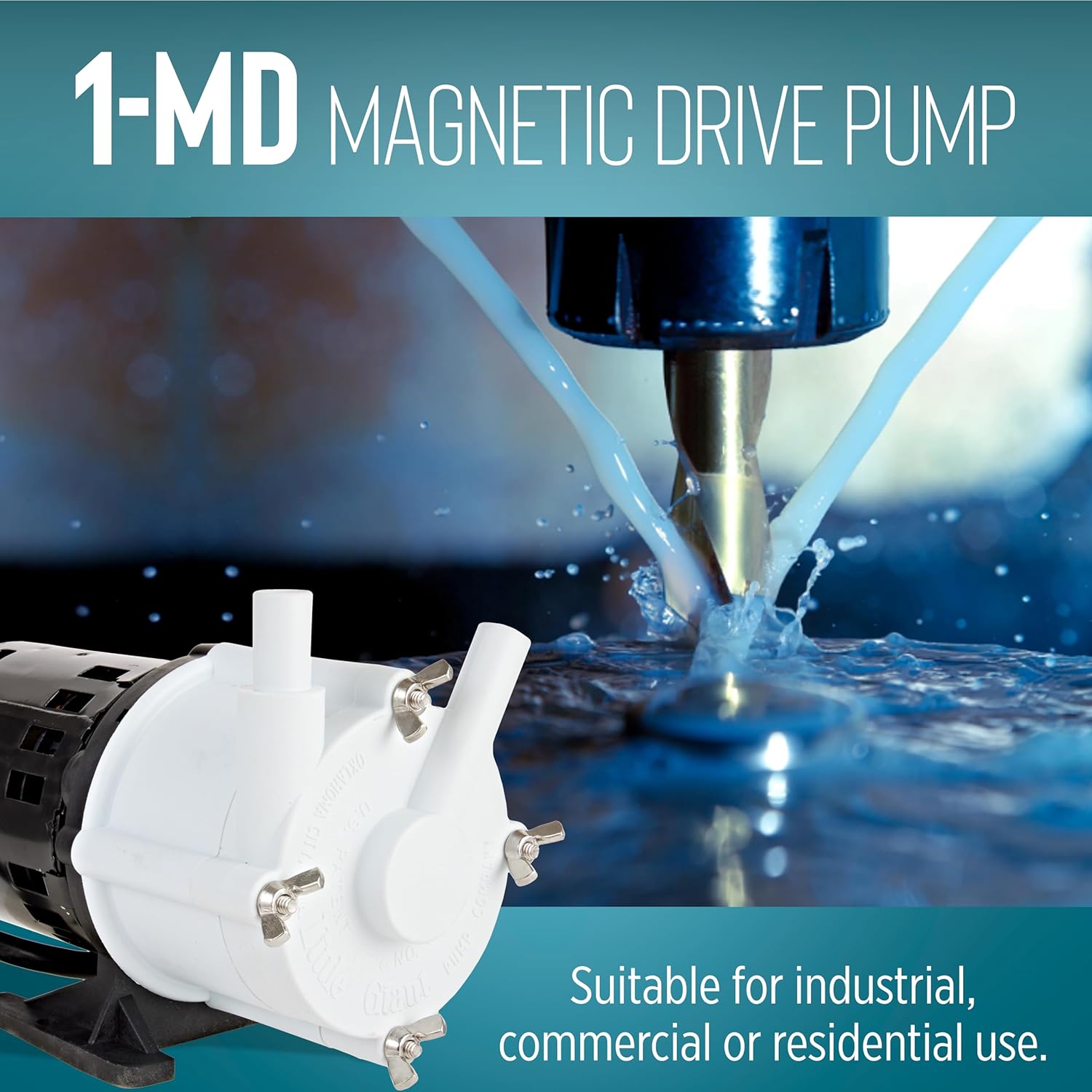

Little Giant 1-MD 115-Volt, 1/70 HP, 180 GPH Magnetic Drive Mildly Corrosive Chemical Transfer Pump, 6-Foot Power Cord, Black/White, 589002
Product details
| Management number | 210140089 | Release Date | 2026/04/02 | List Price | $86.38 | Model Number | 210140089 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Little Giant 1-MD is a non-submersible, in-line pump that handles most mildly corrosive fluids such as low concentrations of acids and alkalis in the pH range of 5 to 9 at fluid temperature up to 150 °F. The pump's patented magnetic drive design is engineered to resist corrosion, chemical attack, and abrasive wear.Features and benefits:- 1/70 HP open fan-cooled motor; CSA listed in the USA and Canada- glass-filled polypropylene housing and volute for excellent chemical resistance- glass-filled polypropylene and Ceramagnet "a" (barium ferrite) impeller- titanium shaft and thrust washers for excellent wear and trouble-free services- nitrile O-ring- pumping heads are easily rotated making installation easier- easy-to-remove wing nuts require no special tools for servicing or maintenanceThe Little Giant 1-MD can deliver up to 180 GPH at 1' lift with a shut-off of 10.6' and a maximum pressure of 4.6 PSI. The discharge and intake are designed to fit 1/2" I.D. hose. The motor runs on 0.8 Amps and 60 Watts. This unit is equipped with a 6' cord and 115-volt 3-prong plug that fits standard North American outlets.
- APPLICATIONS: for in-line, non-submersible use to circulate mildly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions and other liquid compatible with the pump's material
- CHEMICAL RESISTANT CONSTRUCTION: glass-filled polypropylene volute, housing; glass-filled polypropylene and Ceramagnet "A" barium ferrite impeller; titanium shaft and thrust washers; nitrile O-ring
- NO SPECIAL TOOLS REQUIRED: pumping head is easily rotated for easier installation; wing-nuts allow for easy cleaning and services
- MOTOR SPECIFICATIONS: 1/70 HP; thermally protected, open, fan cooled motor; 115-volt with 6' cord and 3-prong plug; 60 Hz; 0.8 running Amps; 60 Watts; CSA listed in the USA and Canada
- PUMP SPECIFICATIONS: discharge and intake fits 1/2" I.D. hose; 180 GPH at 1' lift; maximum 4.6 PSI; can handle fluid temperatures to 150 °F; maximum air temperature to 77 °F; specific gravity to 1.1
| UPC | 010121890022 |
|---|---|
| Color | Black/White |
| Voltage | 115 Volts |
| Flow Rate | 3 Gallons Per Minute |
| Brand Name | Little Giant |
| Unit Count | 1.0 Count |
| Item Weight | 3.5 Pounds |
| Manufacturer | Little Giant |
| Model Number | 589002 |
| Power Source | Corded Electric |
| Material Type | Ceramagnet "A" barium ferrite, Glass-filled polypropylene, Nitrile, Titanium |
| Product Style | 180 GPH, 115V |
| Item Type Name | 1-MD 115-Volt, 1/70 HP, 180 GPH Magnetic Drive Mildly Corrosive Chemical Transfer Pump, 6-Foot Power Cord |
| Included Components | installation manual, pump with 6' cord and 3-prong plug |
| Maximum Lifting Height | 10.6 Feet |
| Item Dimensions L x W x H | 7.11"L x 3.94"W x 4.94"H |
