| Management number | 210852324 | Release Date | 2026/04/04 | List Price | $13.58 | Model Number | 210852324 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

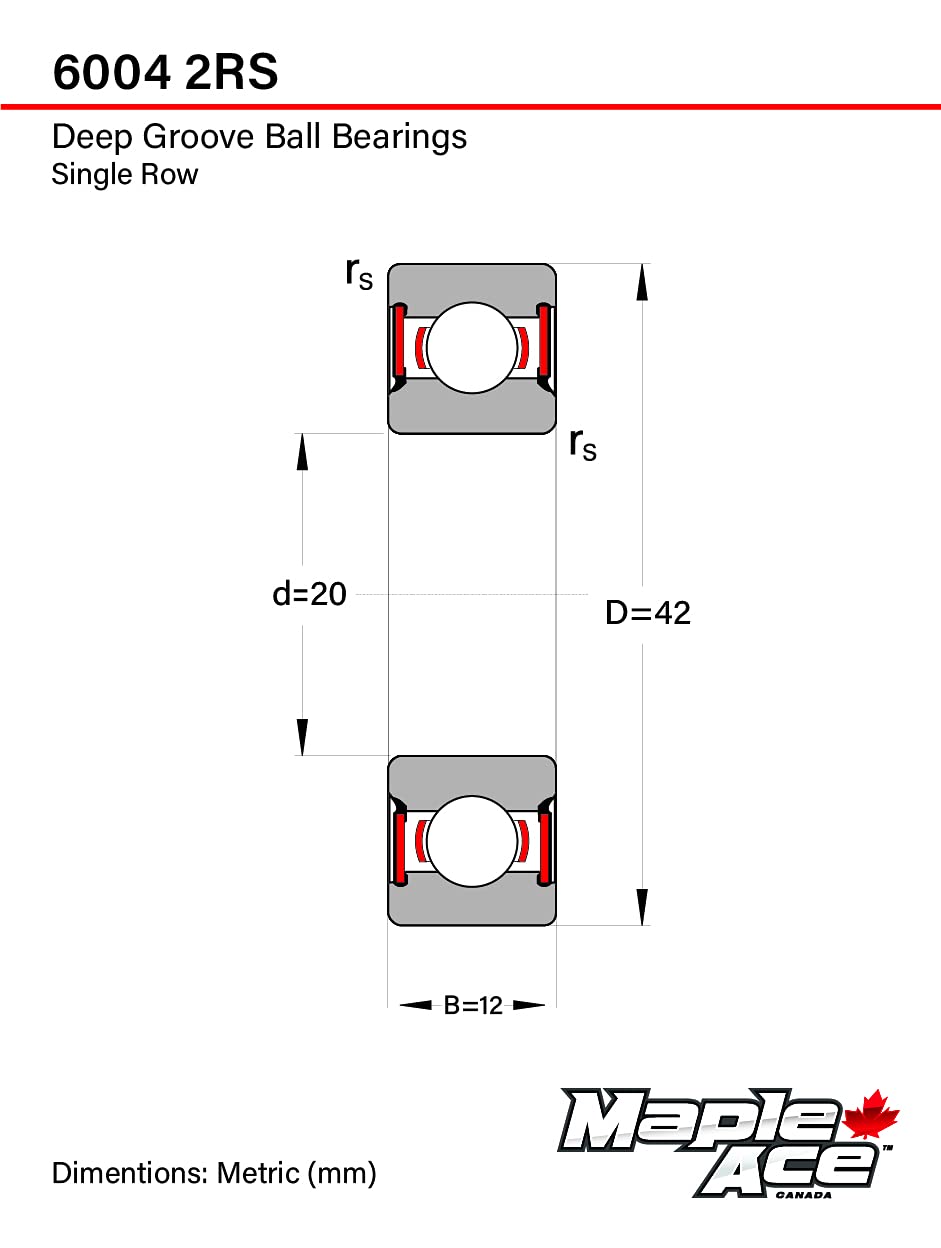

Single-row deep groove ball bearings with seals or shields on one or both sides are particularly versatile, offering low friction and optimized performance for low noise, low vibration, and high rotational speeds. They can accommodate both radial and axial loads in both directions, making them suitable for a wide range of applications. These bearings are easy to mount and require less maintenance than many other types. The integral sealing system significantly prolongs bearing service life by keeping lubricant within the bearing and keeping out dust. - Specification: Item 6004-2RS, Bearing Type Deep groove ball bearing, Bore Diameter 20.00mm, Outside Diameter 42.00mm, Width 12.00mm, Dynamic Load Rating Cr 9950N, Static Load Rating Cor 5000N, Limiting Speed 11000 r/min, Clearance Normal, Tolerance Classes P5, Cage Metal, Closures Seal on both sides, Lubrication Type Grease Chevron, Lubrication Temperature -30°C to +180°C, Rolling Element Indicator Ball, Material Gcr15, Product Weight 0.069 KG.
| UPC | 841339013053 |
|---|---|
| Brand Name | MAPLE ACE |
| Unit Count | 20.0 Count |
| Item Weight | 1.36 Kilograms |
| Bearing Type | Ball Bearing |
| Manufacturer | MAPLE ACE |
| Material Type | Alloy Steel |
| Bearing Number | 6004-2RS |
| Item Thickness | 12 Millimeters |
| Item Dimensions | 4.33 x 2.99 x 1.5 inches |
| Outside Diameter | 42 Millimeters |
| Specification Met | ABEC 3 |
| Included Components | No |
| Compatible Lubricant | Grease |
| Warranty Description | No Warranty |
