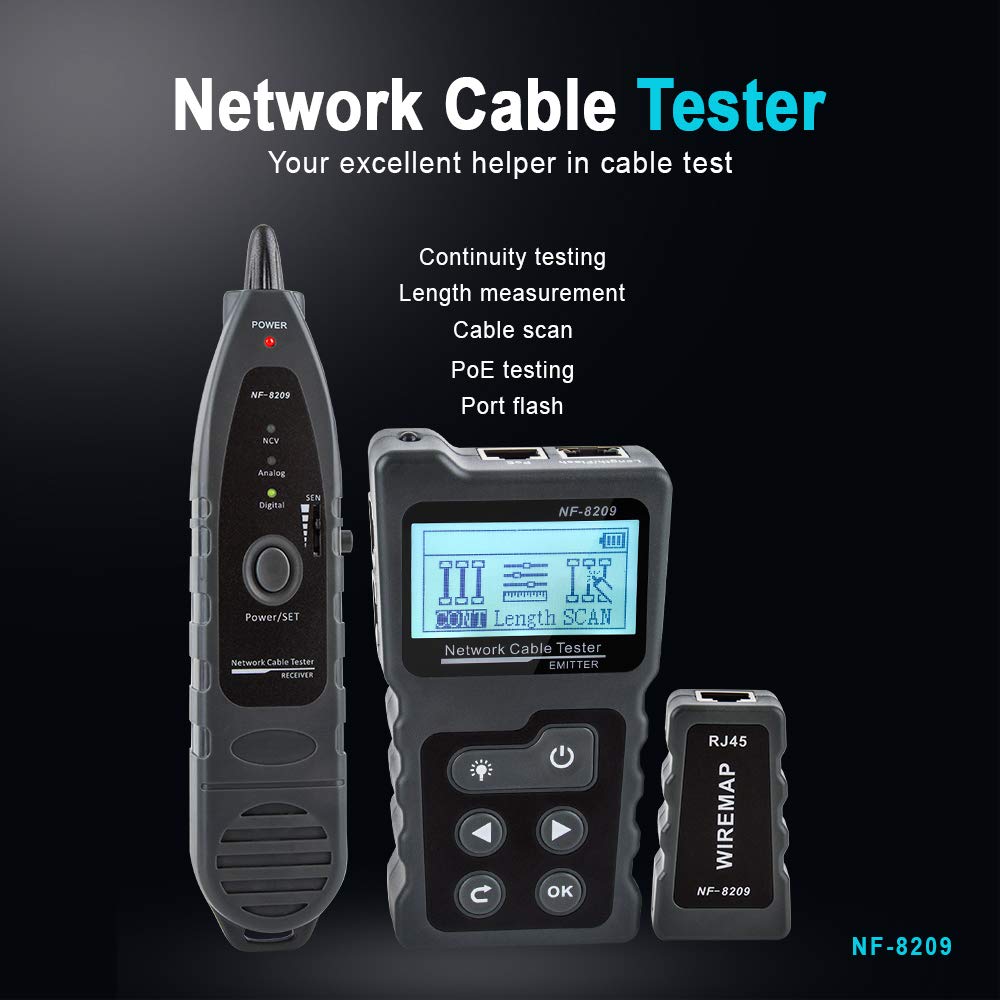

Network Cable Tester NF-8209 Wire Tracker Network Tool Scan Cable Wiremap Tester CAT5 CAT6 Cable Length Measurement, PoE Testing, NCV Function

NF-8209 is a new generation to offer digital and analog signaling all in one network toner and probe. It has three modes for options to track cable like digital mode, analog mode and PoE mode. That means it’s equipped with the most powerful cable location technologies for any work environment. Also, it includes cable length measurement , cable faults testing, PoE testing, hub blink and NCV function, all these makes it a must-tool for cabling engineers. Product Operation 1. CONT-- Test open, short, cross,ect for STP, UTP cable. 2. Length--measure length of lan cable, range is 2.5m~200m. 3. Scan--Analog/Digital/ PoE mode to locate lan cables. 4. PoE-- available for standard or non-standard PoE switch (5~60V), identify AT or AF standard of PSE type. 5. Flash--locate network port by the flashing port light on switch/ router. 6.Setting: Set language, backlight time, auto-off time, contrast and version.Specification: Item Name: Network Cable Tester Material: ABS Transmitter function : wiremap, length test, cable scan, PoE testing, port flash, lighting function.Cable type: CAT5e,CAT6,CAT6a(STP&UTP) Transmitter parameter:LCD display with backlightpower supply: AAA battery*3 (not included) Low battery warning:2.7VAuto-off time:15/30/60min/OFFVoltage protection:DC 48V 5mAMax working current:<150mASize:130*70*28mmReciver parameter: Sensitivity adjustableAC voltage detectinglighting functionpower supply:9V*1pc(not included) Low battery warning:6+-0.5VMax working current:<100mASize:210*43*27mmRemote: wiremap port:RJ45Voltage protection:DC 48V 5mASize:65*37*23mmPackage Includes: 1 x Transmitter 1 x Receiver 1 x Remote Adapter 1 x Earphone 1 Set of Cable Adapters 1 x Carry Bag 1 x User Manual

• [Network cable scanning] Three scan modes selectable: Digital model/ Analog mode/ PoE mode.
• [Cable continuity testing] Test physical status for STP, UTP lan cable.
• [Cable length measurement] Measure cable length and locate fault distance accurately for lan cable.The cable type is CAT5e,CAT6,CAT6a(STP&UTP). The test range must be 2.5m~200m.
• [PoE Testing & Port Flash] Test the information of PoE device, such as PoE voltage, power supply polarity, power supply mode. It can also identify which the type of PSE (at/af standard) If it is standard PoE device. If it is no-standard PoE device, it only display “non-standard”. Locate network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch.
• [Non-contact voltage detecting] Detect AC voltage presence (50V-1000V). You can press the "Power/Set" button on the receiver, if the "NCV”indicator is light on, then you can use the receiver to detect AC voltage presence.
