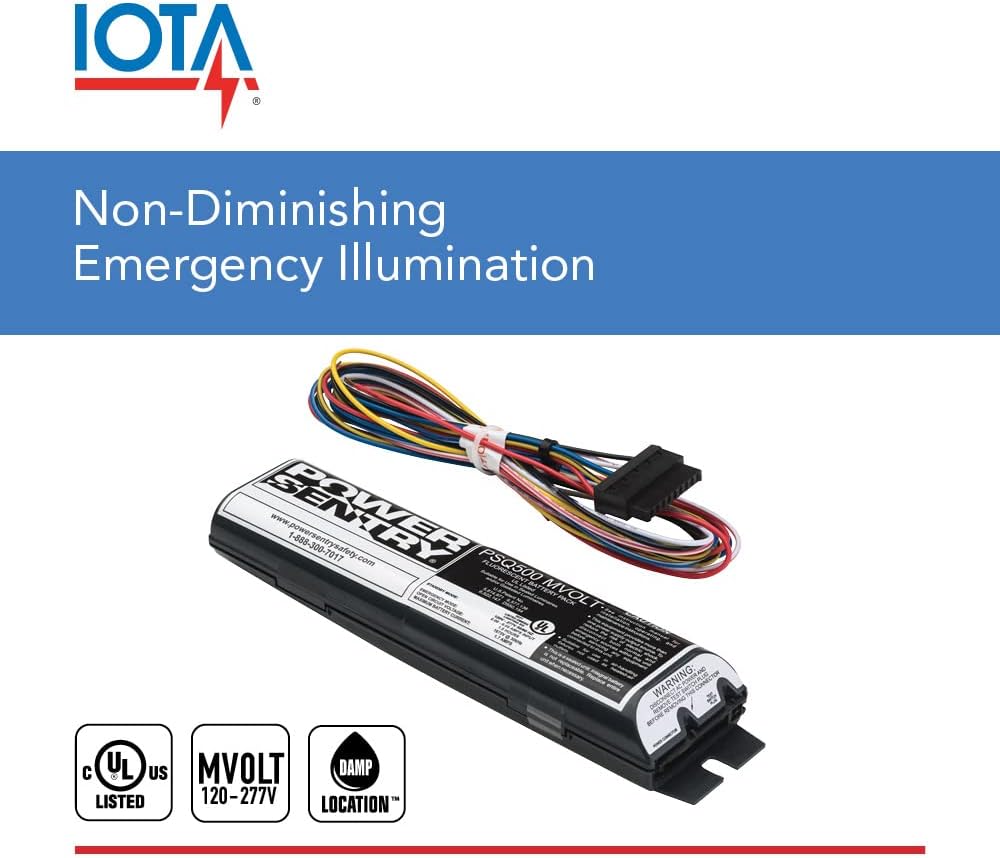

Power Sentry Emergency Battery Back Up, Long Compact and T8 Compatible Fluorescent Ballast with 550 Lumen Output, 90 Minute Emergency Operation, UL Listed (PSQ500QD MVOLT M12)
Product details
| Management number | 210206230 | Release Date | 2026/04/02 | List Price | $36.00 | Model Number | 210206230 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This Power Sentry PSQ500QD MVOLT Emergency Ballast by Lithonia Lighting fit in the tightest of applications, including low-profile lensed troffers, downlighting and industrial lighting fixtures. Featuring an innovative Quick-Disconnect wiring harness that makes field maintenance and upgrades quick and easy.
- HIGH PERFORMANCE BATTERY BACKUP: The Power Sentry emergency battery pack ensures lighting in fluorescent light fixtures during power failures; It powers uninterrupted light and allows the same shop light to be used for both normal and emergency operation
- 90-MINUTE OPERATION: The emergency backup battery switches to emergency mode in a power failure and operates one or two lamps for 90 minutes; Battery automatically recharges after 90-minute discharge and is fully charged after 24 hours
- COMPATIBILITY: Fluorescent light battery can be used with most 2′-4′ T8 lamps and Long Compact (4-Pin) lamps with an initial output of up to 550 lumens for one lamp
- INSTALLATION OPTIONS: Patented Quick-Disconnect connector system allows for quick and easy replacement in enclosed and gasketed fixtures; Durable thermoplastic/metal housing resists impact, scratches, and corrosion
- SPECIFICATIONS: Compact size (9.5” L x 2.5” W x 1.18” H) fits a variety of fluorescent fixtures; Long-life 3,6V Ni-Cad battery has 7–9 year life expectancy; MVOLT (120V-277V; 50-60 Hz); Includes pilot light and test switch; 5-year limited warranty
| UPC | 735090726867 784231124413 820476730016 |
|---|---|
| Color | Black |
| Shape | Rectangular |
| Theme | Industrial |
| Voltage | 120 Volts |
| Wattage | 3 watts |
| Bulb Base | G13 |
| Room Type | Living Room |
| Brand Name | Lithonia Lighting |
| Brightness | 500 Lumen |
| Efficiency | 167 lumens per watt |
| Model Name | Emergency |
| Style Name | Power Sentry Quick Disconnect Emergency Fluorescent Battery Pack |
| Unit Count | 1.0 Count |
| Item Weight | 1 Pounds |
| Shade Color | Clear |
| Switch Type | Push Button |
| Finish Types | Black |
| Fixture Type | Non Removable |
| Light Source | Fluorescent |
| Manufacturer | Lithonia Lighting |
| Model Number | PSQ500QD MVOLT M12 |
| Power Source | AC |
| Material Type | Thermoplastic; Metal |
| Mounting Type | Protruding |
| Warranty Type | manufacturer |
| Control Method | App |
| Item Type Name | Battery Back Up, Long Compact and T8 Compatible Fluorescent Ballast with 550 Lumen Output, 90 Minute Emergency Operation, UL Listed (PSQ500QD MVOLT M12) |
| Shade Material | Glass |
| Controller Type | Push Button |
| Lighting Method | Downlight |
| Number of Items | 1 |
| Installation Type | Flush Mount |
| Required Assembly | Yes |
| Specification Met | Osha, UL |
| Light Fixture Form | Ceiling |
| Included Components | Instruction Manual |
| Indoor Outdoor Usage | Indoor |
| Water Resistance Level | Not Water Resistant |
| Number of Light Sources | 4 |
| Item Dimensions L x W x H | 9.5"L x 2.5"W x 1.5"H |
| Specific Uses For Product | Ceiling fan |
| Manufacturer Warranty Description | All products purchased have a 30-day replacement parts policy to ensure a fully working item. All products are covered under a 1-year warranty when purchased on amazon. The warranty period begins on the day the product is originally shipped. The warranty covers all of the items and conditions identified in the original manufacturers warranty. Some of the items specifically not covered by the warranty are loss and theft, water damage, customer abuse, and finish detoriation due to uv or coastal exposure. |
| Global Trade Identification Number | 00820476730016 |
| Other Special Features of the Product | 90 minute battery life |
