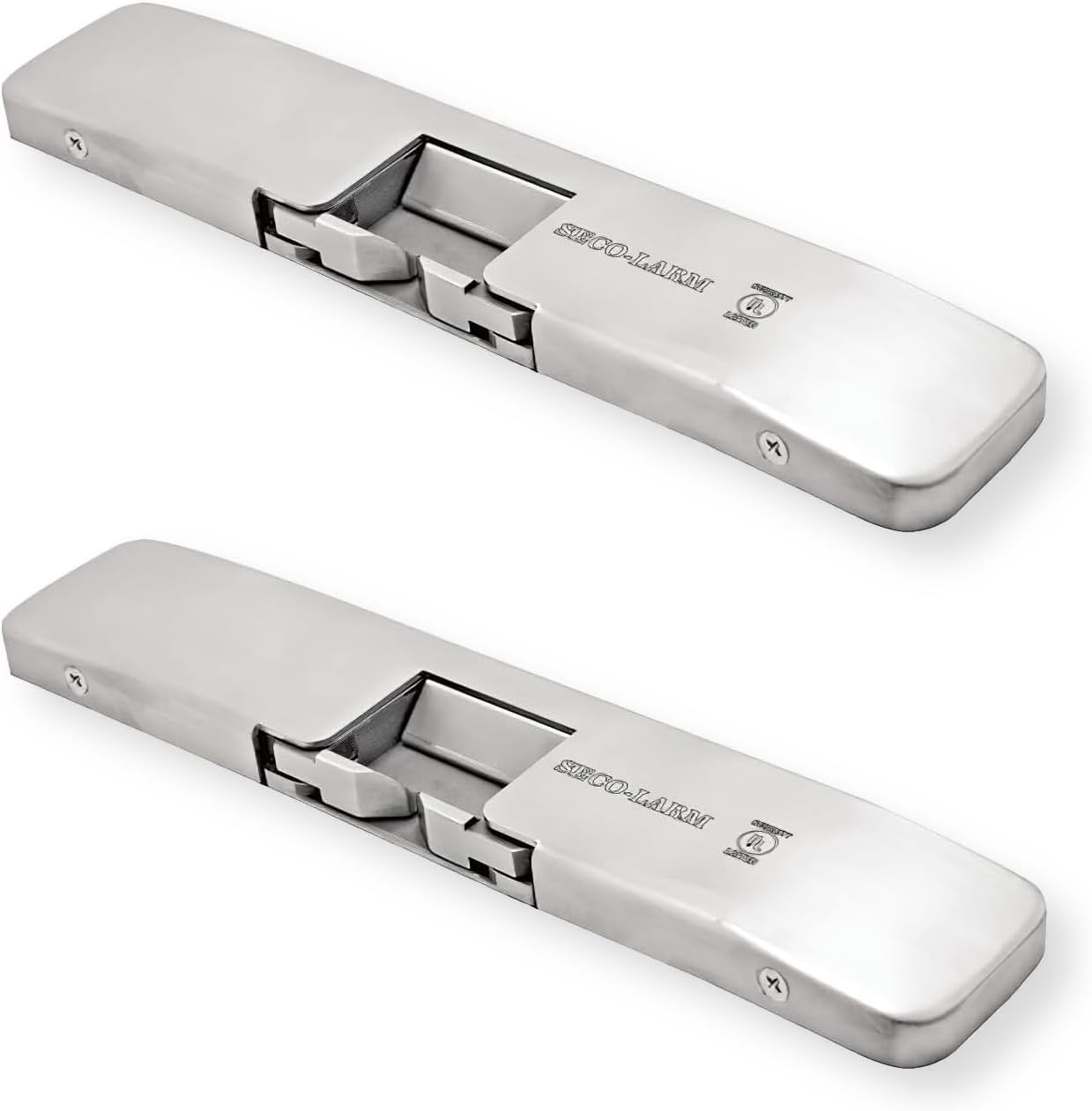

Seco-Larm SD-998C-D3AQ Tamper-Resistant 1/2" Latch Throw Electric Rim Strike, 12/24VDC, Non-polarized Connection, Horizontal Adjustment, Stainless Steel Construction, For Indoor Use Only

Seco-Larm SD-998C-D3AQ Tamper-Resistant 1/2" Latch Throw Electric Rim Strike, 12/24VDC, Non-polarized Connection, Horizontal Adjustment, Stainless Steel Construction, For Indoor Use Only The SECO-LARM Surface-Mount Electric Rim Strike designed with the strength and durability for use with rim-type exit devices with a Pullman latch bolt (1/2" throw). The strike features 12/24 VDC operating voltage, selectable fail-safe/fail-secure operation, horizontal adjustment, and a surface-mount metal housing, eliminating the need for frame cutting during installation. Key Features: - 1/2" Latch throw - Tamper-resistant - 12/24 VDC Operating voltage - Non-polarized connection - Horizontal adjustment - Reversible non-handed design - Stainless steel construction - Surface-mount on metal or wood frames - Works with standard rim-type exit devices including SECO-LARM SD-962AR-36A and SD-962AR-36G - For Indoor Use Only - Static strength - 1,500-lb (6673N) - Tested for 250,000 cycles (UL Tested) - Low current draw: 540mA@12VDC, 270mA@ 24VDC - Field-selectable for fail-safe or fail-secure operation - Spacers included: 1x-1/16", 2x-1/8" (1.5mm, 3mm) Specifications: - Operating Voltage: 12/24 VDC - Current Draw: 540mA@12VDC , 270mA@24VDC - Latch Throw: 1/2" - Static Strength: 1,500-lb (6673N) - Dynamic Strength: 70ft-lb (95J) - Endurance: 250,000 cycles (UL Tested), Level IV - Destructive Attack: Level I - Line Security: Level I - Standby Power: Level I - Overall Dimensions: 9.01 x 1.77 x 0.51 inches

• 1/2" Latch throw
• Tamper-resistant
• 12/24 VDC Operating voltage
• Non-polarized connection
• Horizontal adjustment
• Reversible non-handed design
• Stainless steel construction
• Surface-mount on metal or wood frames
• Works with standard rim-type exit devices including SECO-LARM SD-962AR-36A and SD-962AR-36G
• Static strength - 1,500-lb (6673N)
