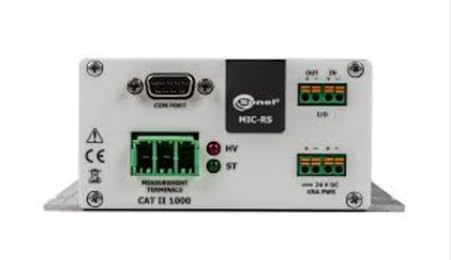

Sonel MIC-RS Insulation Resistance Meter 500 kΩ - 9.99 GΩ

The instrument is dedicated for companies and sites, in which continuous or random assessment of the insulation resistance is required as part of production. It is also perfect for automated production systems. The meter can be installed in the distribution board, at the operator’s station (assembly or quality control bench), in the control cabinet or even in the rack enclosure. The measurement is performed by means of clamps, used to connect the test leads of the system, in which the instrument is installed. Data transmission to a controlling device is carried out through the RS-232 interface or, at the customer's request, any other.

• Selectable measurement voltage: 500 V or 1000 V
• Automatic discharge of the measured object’s capacitance upon completion of insulation resistance measurement
• Measurement current ≤2 mA
• Protection against the measurement of live objects
• Two- or three-lead method of insulation resistance measurement
• Please allow 2 - 3 weeks lead time. Comes with a 2 year warranty from the manufacturer.
