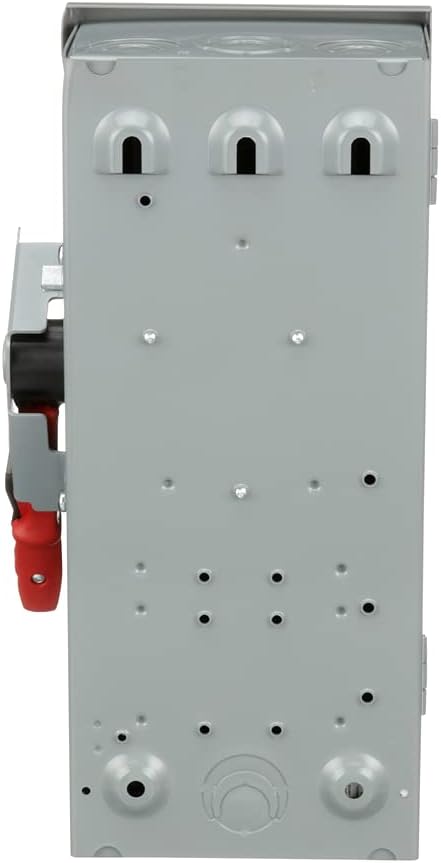

Square D - HU361 Heavy Duty Safety Disconnect Switch, Steel, Non-Fusible, 30-Amp, 600V, 3-Pole, 30 HP, Indoor
Product details
| Management number | 210093241 | Release Date | 2026/04/02 | List Price | $47.14 | Model Number | 210093241 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The Square D by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptiol performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Single Throw Safety Switch has a rated current of 30A and is UL listed with a NEMA 1 rating of protection. This 3-pole switch has operatiol voltage ratings of 600VAC/DC. The enclosure is made of steel and has no neutral installed. This non-fusible disconnect has a short circuit current rating of 200kA. This safety switch is surface mounted. This switch comes with an 18 months warranty.
- Single Throw Heavy Duty Safety Switch
- NEMA 1 steel
- Short Circuit Current Rating: 200 kA maximum
- Surface Mounting Type
- UL Listed
| UPC | 785901505723 |
|---|---|
| Color | STEEL |
| Model | HU361 |
| Wattage | 3600 watts |
| Terminal | Screw |
| Brand Name | Schneider Electric |
| Unit Count | 1.00 Count |
| Item Weight | 3447 Grams |
| Switch Type | Toggle |
| Circuit Type | parallel |
| Contact Type | Normally Open |
| Manufacturer | Square D |
| Actuator Type | Toggle |
| Material Type | Steel |
| Mounting Type | Surface Mount |
| Connector Type | Screw Terminal |
| Control Method | Push Button |
| Current Rating | 30 Amps |
| Item Type Name | Safety Switch |
| Operation Mode | Electric |
| Item Dimensions | 4.87 x 7.55 x 14.6 inches |
| Number of Items | 1 |
| Contact Material | Copper, Brass |
| Operating Voltage | 600 Volts |
| Specification Met | nema |
| Included Components | Unit^Instruction Guide |
| Number of Positions | 3 |
| Warranty Description | 18 months |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP54 |
