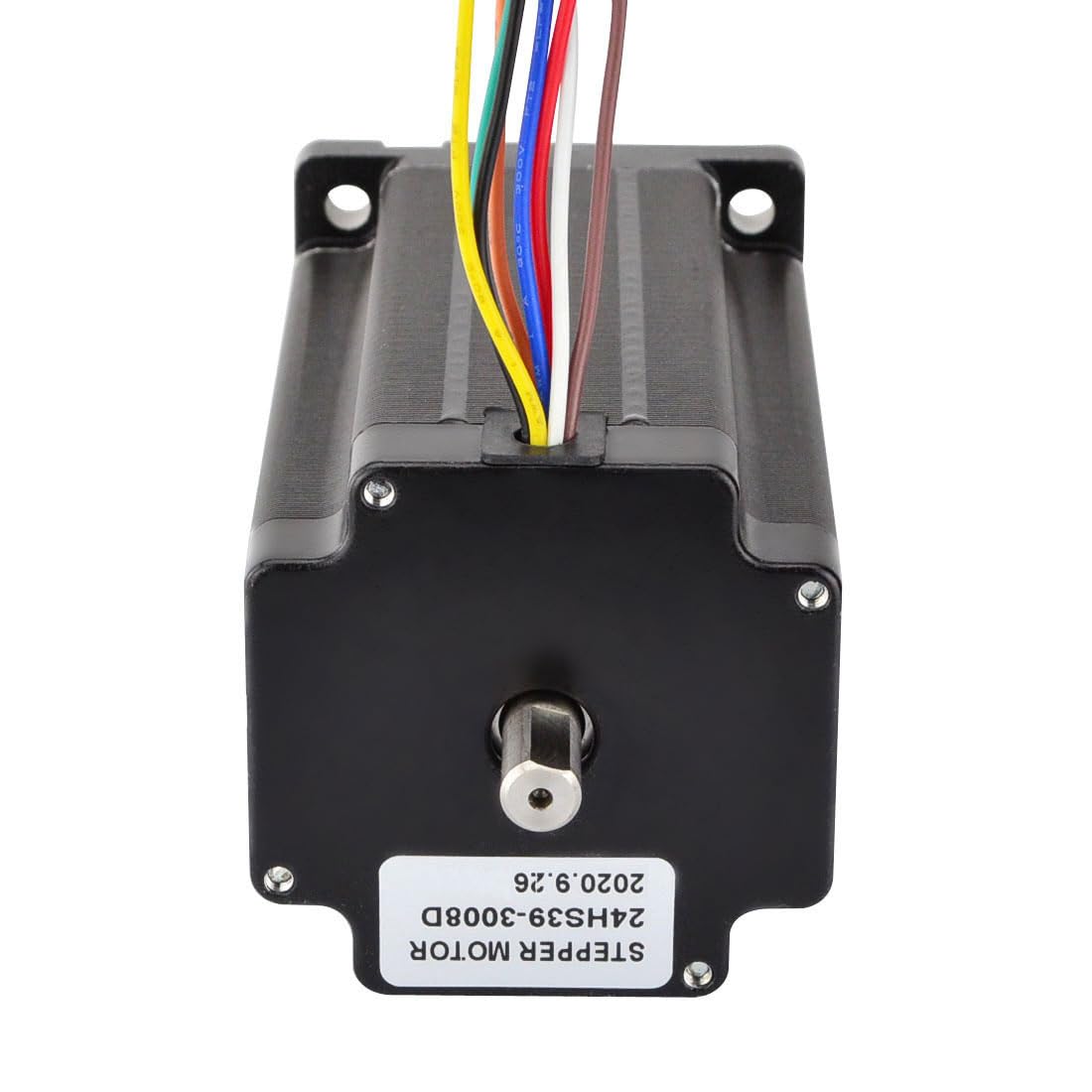

STEPPERONLINE Nema 24 Stepper Motor 3.4Nm(481.6 oz.in) 3A 8-Wire 8mm Dual Shaft CNC Mill Lathe Laser Router

100% brand new from "Stepperonline". Electrical specification: * Manufacturer Part Number: 24HS39-3008D * Engine type: unipolar / bipolar * Step angle: 1.8 deg. * Holding torque (bipolar): 4.0 Nm (566 oz.in). * Holding torque (unipolar): 2.8 Nm (397 oz.in). * Rated current (bipolar serial): 2.12 A. * Rated current (bipolar parallel): 4.24 A. * Rated current (unipolar): 3.0 A. * Phase resistance (bipolar serial): 2.8 ohms. * Phase resistance (bipolar parallel): 0.7 ohms. * Phase resistance (unipolar): 1.4 ohms. * Inductance?t (Bipolar Serial):12.0mH±20%(1KHz) * Inductance (bipolar parallel):3.0mH±20%(1KHz) * Inductance (Unipolar):3.0mH±20%(1KHz) Physical specification: * Frame size: 60 x 60 mm. * Body length: 100 mm. * Shaft diameter: 8.0 mm. * Vorderseite Schaftl?nge:24mm * Rear shaft length: 13 mm * D-cut length: 20 mm * Number of leads: 8 * Lead speed: 400 mm. * Weight: 1.6 kg. Connection: Rot (A +), Gelb (A-), Schwarz (C+), Blau (C-),Wei? (B+), Orange(B-), Green (D+), Brown (D-) Warning: * As a stepper motor, it should be connected to a constant current or chopper driver. If you connect the motor directly to a power supply, the motor will be destroyed. * Please pay attention to order four wire coils when connecting to the driver, or it will damage your driver.

• Unipolar/Bipolar 8 Wires
• Huge Torque: 3.4Nm(481.6oz.in)
• CNC Stepper Motor
