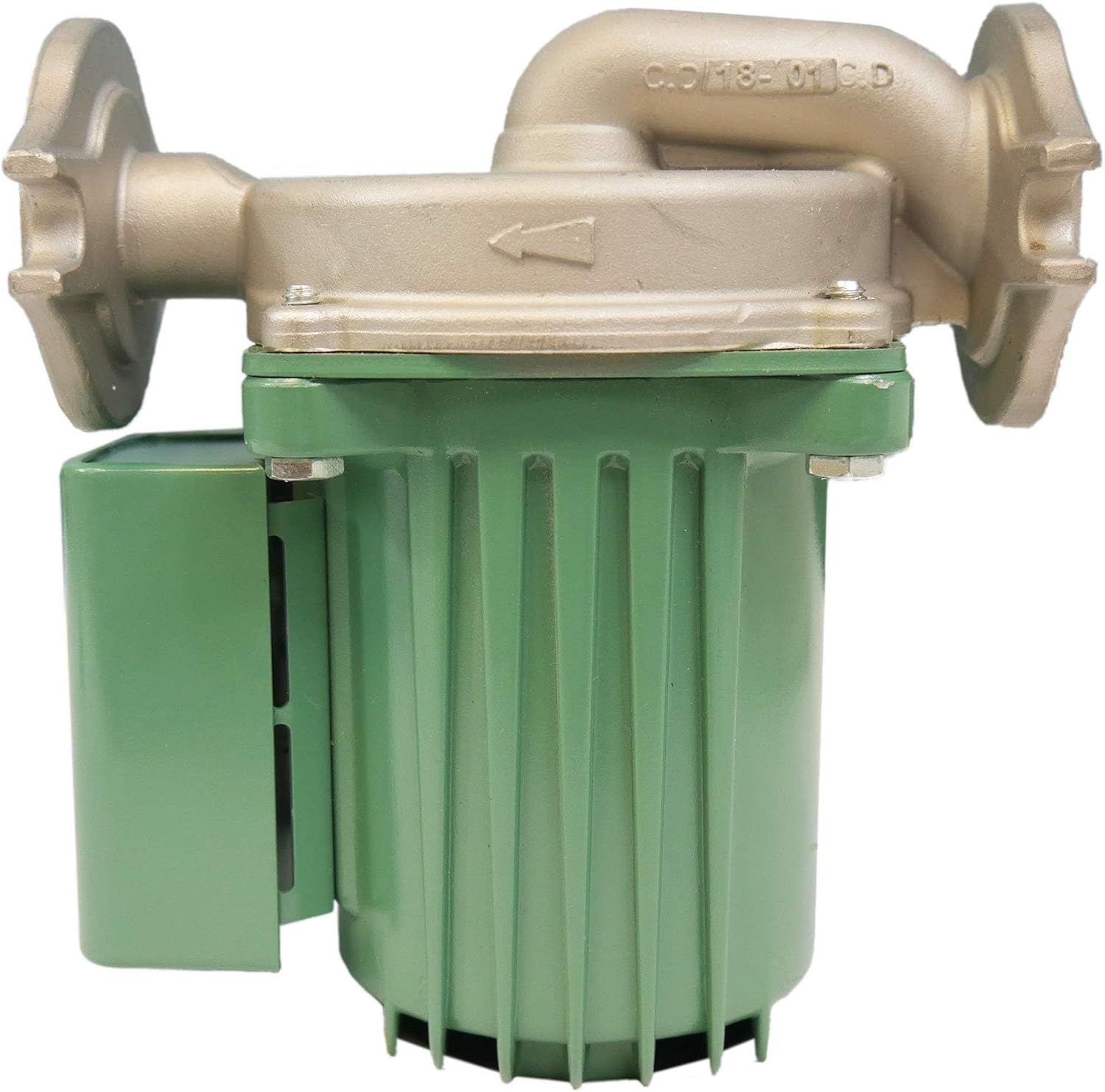

Taco 009-SF5 Stainless Steel High Velocity Cartridge Circulator Pump

Product Description The Taco 009 is designed for a wide range of residential and light commercial higher-head/lower-flow water circulating applications. Typical uses include hydronic heating, radiant in-floor/panel heating and closed-loop solar heating systems. The Stainless Steel 009 can be used in higher-head/lower-flow heat recovery, open-loop solar heating and light commercial domestic water recirculation systems. The unique replaceable cartridge contains all of the moving parts and allows for easy service, instead of replacing the entire circulator. Compact, direct-drive, low power consumption design is ideal for high-efficiency jobs. Max. Flow: 10 GPM, Max. Range- 35 Feet, Min. Fluid Temperature: 40 F 4 C, Max. Fluid Temperature: 230 F 110 C,Max. Working Pressure: 150 psi,Connection Sizes: 3/4", 1", 1-1/4", 1-1/2" Flanged. Casing Volute: Cast Iron or St. Steel, Stator Housing: Aluminum,Cartridge: Stainless Steel, Impeller: Non-Metallic, Shaft- Ceramic Bearings- Carbon, O-Ring & Gaskets: EPDM. The High Velocity series Taco 009-F5 Circulator Pump is designed for use in high head and low flow applications in hydronic heating and radiant heating. Features a field-serviceable cartridge which allows to replace the cartridge without replacing the entire circulator. The Taco 009-F5 no maintenance design provides unmatched reliability. From the Manufacturer The High Velocity series Taco 009-F5 Circulator Pump is designed for use in high head and low flow applications in hydronic heating and radiant heating. Features a field-serviceable cartridge which allows to replace the cartrigde without replacing the entire circulator. The Taco 009-F5 maintenance free design provides unmatched reliability.

• included components: Unit
• Instruction Guide
