TDPRO JCMOTO 36v 800w Brushed Speed Motor and Controller Set for Electric Scooter Go Kart Bicycle e Bike Tricycle Moped

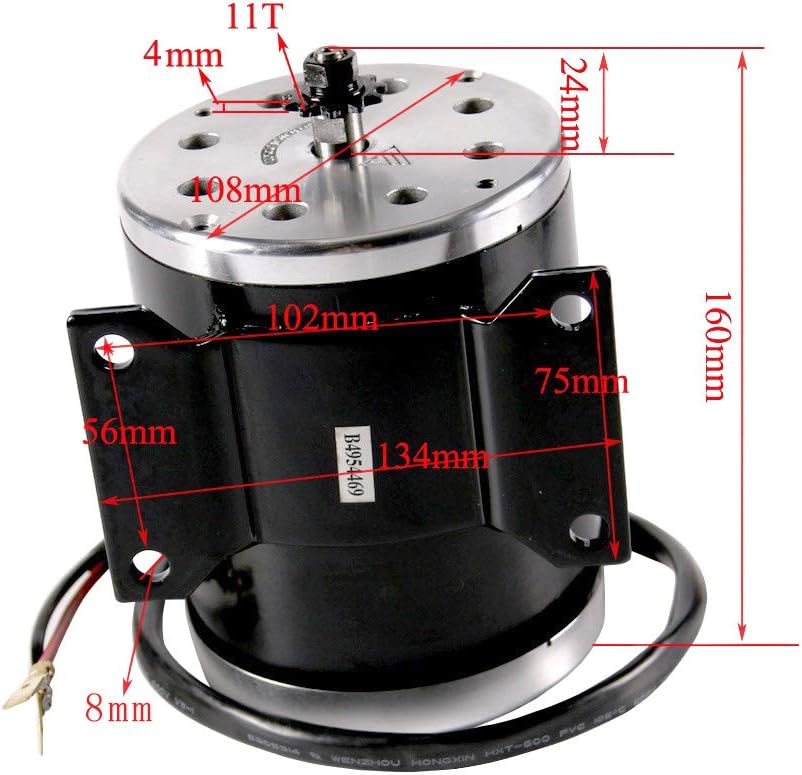

Specifications:Motor:Output: 800WRated speed: 2750-3045 RPMRated voltage: 36V DCRated current: 27ANo-load current: ≤2.6APeak efficiency at 36V: 80 percentReversible: (w/ polarity swap)Sprocket：for 25H chainNote: This motor is capable of rotation in either the clockwise or counterclockwise direction by reversing the motor's power wires.Controller:Rated voltage: 36V DCConversion efficency: 95% Under Voltage Protection: 31.5±0.5VSpeed regulator (throttle): 1-4 VController Wiring:This controller has 8 connectors, compatible with many 36V bikes with up to 800W motors1. Battery / 2. Motor / 3. Brake / 4. Brake light / 5. Indicator light / 6. Ignition lock / 7. Charger port / 8. Derailleur (throttle)These controllers have 4 groups neccessary cables: Battery, Motor, Ignition lock, Derailleur (throttle), when hook up these 4 groups cables, the E-bike can run normally. Besides, this controller have other optional functions, you can hook them up according to your applications.

• √ This is a set of reliable universal 36VDC 800w brushed electric motor & controller
• √ Rated speed: 2750 RPM, Sprocket for 25H chain, Horsepower: 1.1HP
• √ Suitable for go karts, scooters, e-bike, atv, motorized bicycle, moped, mini bikes, pocket bikes and electric dirt bikes
• √ Refer to picture and below "Product Description" for wiring instruction and specifications
• √ Package includes: 1x Motor + 1x Controller
